Series 9.1

Side flexing and spiral belts l Pitch 50 mm (1.97 in)
Belts for medium to heavy-duty food and non-food applications


Series 9.1 – Excerpt from Prolink Engineering Manual

Design characteristics

  • For use in spiral towers with cage drives as well as in straight and curved conveying systems
  • Strong side modules in a brick pattern for high tensile loads
  • Clip-free hinge pin attachment
  • Stainless steel hinge pins for high load capacity, excellent lateral stiffness, reduced belt support, and stable belt position in curves
  • Adjustable collapse factor from 1.3 to 2.9


Design characteristics Series 9.1 EN

Basic Data

Pitch 50 mm (1.97 in)
Belt width min.100 mm (3.9 in)
Width increments50 mm (1.97 in)
Hinge pins6 mm (0.24 in) made of stainless steel

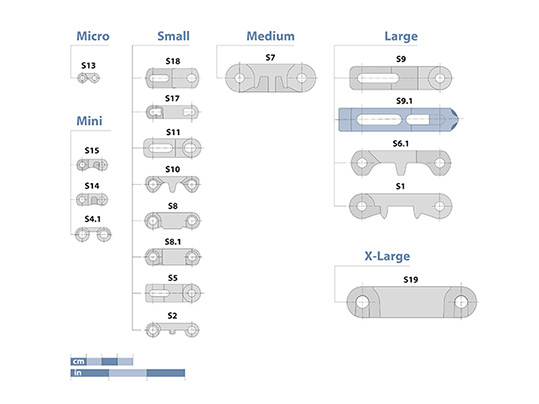

Prolink Serie 9.1 Basic Data

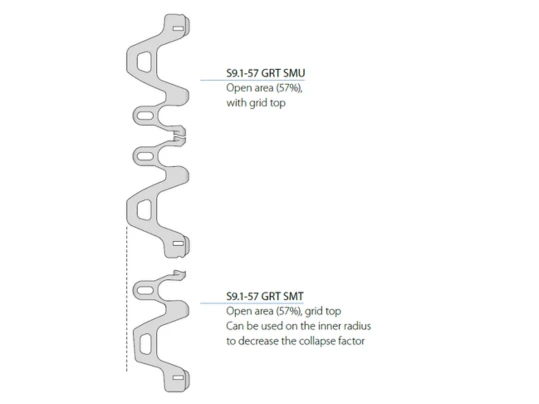

S9.1-57 GRT (CW/CCW) | 57 % Opening | Grid top

Spiral belt | Open area (57 %) for excellent air circulation and drainage | Contact area 31 % (Largest opening: Ø = 24 mm/ 0.94 in) | Lattice-shaped surface | Clip-free hinge pin fitting | Special edge modules (SMT) on the inner radius make the collapsefactor adjustable (Cc = 1.3 – 2.9) and ensure smooth conveying

Series 9.1

Sprockets

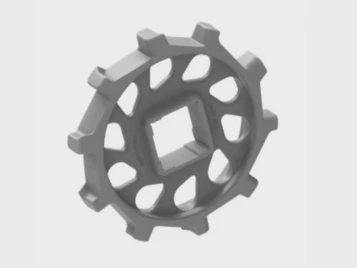

in different sizes with round or square sprocket bore

S9 SPR sprocket
Serie 9.1

Weitere Informationen

  • Datasheet 9.1 EN

    Series 9.1
    Excerpt from Prolink Engineering Manual

  • 909 EN - Prolink Series 9.1 The new customized spiral belt

    Flyer 9.1
    The new customized spiral belt
