Prolink S14 – A robust design for smooth tracking

Tough processes call for a belt designed for both high loads and flawless product conveying. Featuring a small 12.7-mm pitch, Prolink S14 marries high tensile strength with a robust design. For reliable processes involving medium-weight products in the food and non-food sectors.

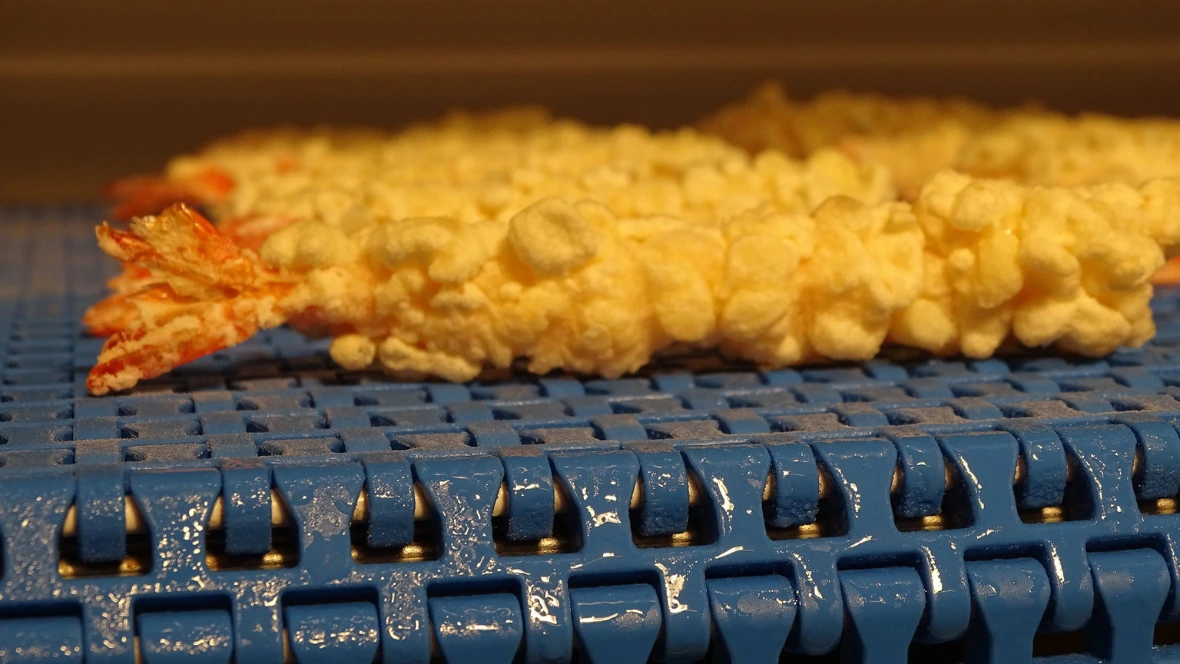

Siegling Prolink S14

Prolink S14
  • Overview
    Peter Broe

    “Prolink S14 is designed for challenging, straight applications. Its small pitch enables tight transfer gaps. At the same time, the durable build guarantees long-lasting performance and high tensile strength. The belt tracks smoothly over fixed returns of 19 mm in diameter, combining precision conveying with outstanding load capacity.”

    Peter Broe, development and strategic product management Prolink

    Why not arrange an appointment now?

    Superior strength meets seamless transfer

    • A mini pitch for precise transfers

      Flawless transfers, every step of the way

      A mini pitch for precise transfers

      With a 12.7-mm pitch, Prolink S14 helps handle tight transfers between each step in the process. It’s designed to run smoothly over fixed returns of 19 mm in diameter. It ensures total product control at every stage – even in the tightest transfer spaces.

    • Strong, right to the edge

      Strong, right to the edge

      Durability that goes the distance

      A robust module design guarantees long-lasting performance and high tensile strength. Solid, enclosed belt edges protect sensitive peripheral areas from damage. As a result, you can count on Prolink S14 to handle processes where everyday reliability is a must.

    • More than just a surface

      More than just a surface

      Flexibility for diverse conveying jobs

      Surfaces with closed or open areas, Friction Tops, or integrated rollers: Prolink S14 allows customization of the conveyor to suit the task concerned. Versions with open areas of 25% boost airflow and drainage. Friction pads increase adhesion. Pin-retained rollers reduce back pressure or help separate products.

    Advantages of Prolink S14

    • Narrow transfer gap: 12.7-mm pitch encourages precise product transfers.
    • Excellent performance: A robust design for exceptional tensile strength
    • Protected belt edges: Solid peripheral areas cut the risk of damage.
    • Smooth operation: Designed for fixed returns with 19-mm diameters.

    • Flexible surfaces: Closed, with open areas or extra adhesion.
    • Options for accumulation processes: Integrated rollers decrease back pressure and encourage product separation.
    • Easy maintenance: Single-piece headless hinge pins facilitate opening and closing the belt.

    Go to the technical page or read the FAQs for more information.

    Heavy-duty conveying. Uncompromising process control.

    Seeking a heavy-duty modular belt with tight transfer gaps and versatile configuration options? Our Prolink experts can suggest the perfect one for your application.

    Next-generation procurement: Reliable, efficient and predictable

    Forbo Siegling combines supply chain resilience and competitive terms with the engineering expertise procurement teams and OEMs demand.

    • An end-to-end partner: A top-tier supplier with an extensive portfolio .
    • One source, one partner: Less coordination, more focus – from product selection to service.
    • Engineering expertise: Superior engineering skills and consistent product quality.
    • Competitive terms: Attractive prices and robust delivery capability.
    • Product availability as required: Lower risk as a reliable alternative to single-sourcing.

    Next-generation procurement: Reliable, efficient and predictable

    Precise conveying

    View YouTube video

    This video is provided by YouTube. Loading it transfers data to YouTube.

    More information

  • Technical information
  • FAQs

    What sets the Prolink series 14 modular belt apart?

    With a pitch of 12.7 mm, series 14 is customized for conveying medium-weight food and non-food products. The small pitch ensures a tight transfer gap, while the hard-wearing design means a long service life and exceptional tensile strength.

    What is the S14-25 PRR type and what’s it used for?

    The PRR (pin-retained rollers) type is tailored to accumulation applications with low back pressure or product separation. The friction coefficient between the belt and product in accumulation processes is just µSt = 0.04, translating to back pressure of around 4% of the weight of the products conveyed.

    What does the series 14 belt do particularly well?

    Series 14 is designed to run smoothly over fixed returns of 19 mm in diameter. Closed, solid edges also prevent damage to the belt edge, which makes the belt exceptionally durable and robust 24/7.

    Our experts can provide support and help to develop a perfect solution for your application.
    Go to the Prolink experts

    What flight options are there for incline conveying?

    The S14-0 FLT/NCL PMC is a flight with a non-adhesive surface that improves release properties of wet and sticky products and has a smooth surface for dry products. The profile comes in 25-mm and 76-mm heights, and in a standard or optional version depending on the material, and is 152 mm wide.

    Does the Prolink series 14 belt have food-grade certification?

    Yes, the belt is NSF compliant, and meets the requirements of the FDA 21 CFR regulation, the EU directives (EU) 10/2011 and (EC) 1935/2004 and the Japanese MHLW 370 regulation. NSF certification applies to production in the Forbo Huntersville (US), Malacky (Slovakia) and Tlalnepantla (Mexico) plants.

    How does the belt make maintenance easy?

    The unique release system with a headless, single-piece hinge pin makes opening and closing the belt during maintenance much easier. As a result, the belt is simple to fit and maintain if required.

    What surface patterns are available?

    There are four types, depending on the application: S14-0 FLT with a closed, smooth surface for standard usage, S14-25 FLT with an open area of 25% for excellent airflow and drainage, S14-25 CUT with a curved surface, and S14-25 FRT1 with a Friction Top for applications requiring gentle adhesion.

    What is the maximum belt width for a single-piece hinge pin?

    The hinge pins are single pieces up to a belt width of 4000 mm. Therefore, series 14 excels in very wide conveyors without compromising stability or tensile strength.

    What materials are available for series 14?

    Standard materials include PE, POM, and PP, with PA also optionally available for higher tensile strength requirements. These options mean the belt can adapt to the demands of diverse temperatures and applications, ranging from -70°C to +120°C, depending on the material chosen.
