Series 19

Design characteristics

• Steel reinforcement links (REL) in peak load areas ensure maximum load capacity for heavy-duty applications
• Special protector inserts reduce wear at point loads and increase the service life
• Heavy-duty sprocket design enables maximum stability and secure support at extreme loads
• Steel pins and a unique straight-through eyelet concept ensure quiet, smooth running at minimal elongation, even over long distances
• Modular steel elements & adjustable wheel stoppers enable maximum adaptability to individual requirements
• Reduced components & split sprocket components enable fast, easy maintenance and minimal downtime
• High electrical conductivity ensures safe operation without electrostatic buildup

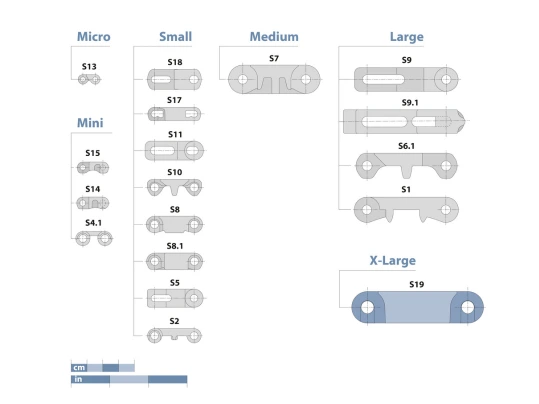

Basic data

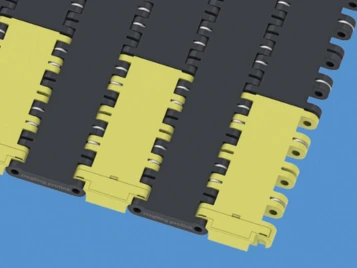

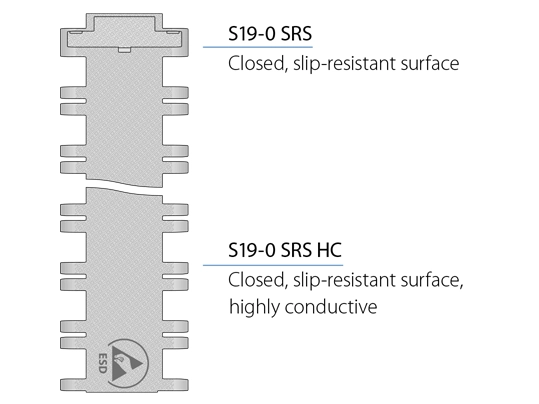

S19-0 SRS HC

• Closed surface
• Slip-resistant
• Highly conductive

S19-0 SRS

• Closed surface
• Slip-resistant

Steel frame

• Steel skeleton for reliable power transmission
• Very high stiffness and smooth running through hinge pin with 8 mm Ø
• Particularly good corrosion resistance due to stainless steel skeleton

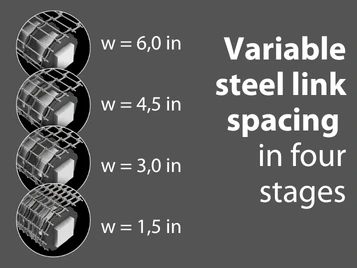

• Variable skeleton density for load-dependent belt design
• Minimization of the belt weight and the energy costs of the drive

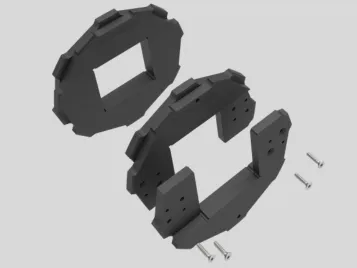

Sprockets

• Innovative sprocket design with double-acting sprocket for improved force application
• Solid design with high wear reserve
• Deep tooth engagement in all hinges for heavy goods
• Can be fully mounted on the drive shaft
• Also available as a split design for easier installation without dismantling the shaft
• Machined sprockets, allowing for individual sizes

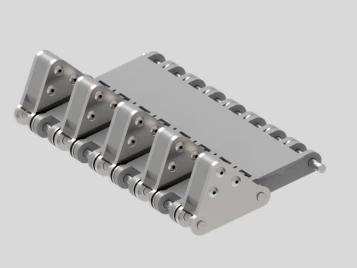

Wheel stopper

• Adjustable wheel stoppers for secure grip
• Adaptable to customer-specific requirements (shape, height and angle adjustable)
• Individually positionable
• Very high strength due to direct connection to the hinge pins

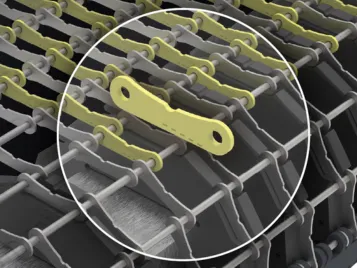

Protector inserts

• Protector inserts to minimize belt wear
• For equipping wheel contact areas and other particularly stressed belt areas
• Increase the contact surface with highly wear-resistant material
