Series 14

Straight running belts l Pitch 12.7 mm (0.50 in)
Belts for medium-duty food and non-food applications


Series 14 – Excerpt from Prolink Engineering Manual

Design characteristics

  • Mini pitch belt with small transfer gap
  • robust design guarantees superior durability and high belt pull capacity
  • Design for smooth run on 19 mm (0.75 in) nose bar
  • Headless pin system making it easy to install and remove the belt for maintenance
  • Closed, solid belt edge to prevent belt edge damages

S14 Design Characteristics

Basic data

Pitch 12.7 mm (0.50 in)
Belt width min.76.2 mm (3.0 in)
Width increments12.7 mm (0.50 in)
Hinge pins3.4 mm (0.13 in) made of plastic

Prolink Series 14 Basic Data

S14-0 FLT | 0 % Opening | Flat top

  • Closed, smooth surface
  • Flat top surface

S14-0-FLT

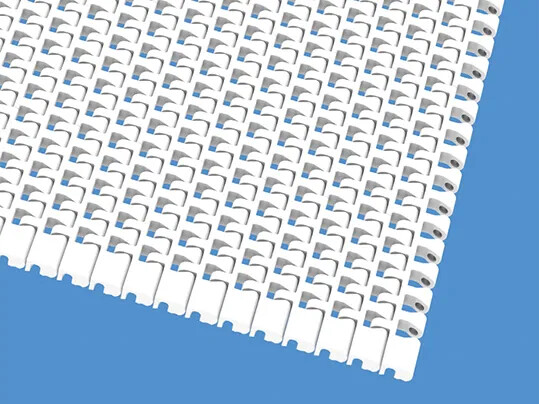

S14 -25 FLT | 25% Opening | Flat top

  • Open version (25 %) for excellent air circulation and drainage
  • Smooth surface

S14-25 FLT

S14 -25 CUT | 25% Opening | Curved top

  • Open version (25 %) for excellent air circulation and drainage
  • 6 % contact area (Largest opening: 8.2 x 2.7 mm/0.32 x 0.11 in)
  • Curved top

S14-25-CUT

S14-25 FRT1 | 25 % Opening | Friction top surface (Design 1)

  • Open version (25 %) for excellent air circulation and drainage with flat integrated friction pads (FRT1) for high grip
  • 32 % contact area
  • Version only available without FRT1 structure at the side (17 mm indent)

S14-25-FRT1

Sprockets

in different sizes with round or square sprocket bore

Series 14 - Sprockets

Detail hinge pin

Headless one-piece pin with unique retention system ensures trouble free installation and maintenance

Series 14 - Detail hinge pin
