New Products

UR 8E-15 HC+ FSTR/NSTR green/grey

Article number: 822174

Industrial Production

The new UR 8E-15 HC+ FSTR/NSTR green/grey ( Art. No. 822174) Extremultus belt has been developed for the electronics industry. 822174 has a High Grip coating with NSTR structure. The special R (High Grip) coating allows electronic components to be carried along very easily, so that they are accurately positioned during production. The special High Conductivity Plus (HC+) belt design prevents electrical charging of the products and guarantees that the electronic components are not damaged.

More

UR 8E-12 HC+ FSTR green/grey

Article number: 822173

Industrial Production

The new UR 8E-12 HC+ FSTR green/grey (Art no. 822173) Extremultus belt has been developed for the electronics industry. 822173 has a Medium Grip coating with a FSTR structure. The special R (Medium Grip) coating allows electronic components to be carried very easily, so that they are accurately positioned during production. The special High Conductivity Plus (HC+) belt design prevents electrical charging of the products and guarantees that the electronic components are not damaged.

More

TR 5P-10 FBRC/FSTR black/green

Article number: 855649

Paper & Printing

The new TR 5P-10 FBRC/FSTR black/green Extremultus belt (art. no. 855649) was developed for the paper industry and is used there, for example in cross cutters. What’s more, 855649 is ideal for use as a multipurpose machine tape and conveyor belt in the printing and packaging industry.

More

TR 10P-30 FBRC/NSTR black/grey FDA

Article number: 855651

Paper & Printing

The new belt type was developed for the production of cardboard packaging for liquid foods (e.g. milk or juice). It has had a very good track record, especially in folder gluers with in-built side sealers and, can even increase the service life.

More

PVC120 OFR HMxF NA blue FDA

Article number: 908933

Food

The new PVC120 OFR HMxF-NA blue FDA (art. no. 908933) belt complements the robust and wear-proof Siegling Transtex product line. This new development is ideal for agricultural applications, e.g. when harvesting fruit and vegetables, as well as in primary agricultural processing of oily and greasy products (e.g. nuts).

More

PVK125 TX0xB transparent FR

Article number: 908123

Industrial Production

The new Siegling Transtex belt with a the hard-wearing, temperature-resistant design performed exceptionally well as an accumulation belt behind the vulcanization section. At this step of the process, the hot, vulcanized tires are fed to the side of the belt via rollers. Thanks to exceptionally low friction Texglide™ top face coating, the tires are positioned in the center of the belt and can therefore be fed properly to the final assembly section. Furthermore, the belt has very good accumulation capabilities, so that multiple uses in general accumulation operations are conceivable.

More

UU 20U-11 GSTR/NSTR black/green

Article number: 855663

Industrial Production

The new elastic polyurethane type was developed for the electronics industry and is used in the production of semiconductors (PCBs) and photovoltaic modules. The NSTR surface pattern enables superb grip and exact positioning of printed circuit boards and modules. The elastic design of the tension member is ideal for use in the electronics industry. Due to their elasticity, the belts track very well. What’s more, they are quick, easy, and reliable to fit on site, which is a huge benefit considering the very compact machinery in the electronics industry. There is also no risk of fabric particles contaminating the electronic components, so flawless production is guaranteed.

More

E 8/2 V1/V1 white

Article number: 901008

Industrial Production

The new Siegling Transilon type E 8/2 V1/V1 white (article number 901008) has been developed for use as an industrial roll-up door. Roll-up doors for the construction industry in Europe must comply with DIN fire safety standards. This material offers the highest level of safety in this respect. It complies with the DIN EN ISO 11925-2 standard and meet the requirements of the German DIN 4102-B2 fire safety standard and the European DIN EN 13501-1, fire safety class E.

More

E 8/2 V1/V1 moss green

Article number: 906899

Industrial Production

The new roll-up door material type E 8/2 V1/V1 moss green (Art. No. 906899) is an interesting alternative in terms of color for use as an industrial roll-up door. In addition, it complies with the DIN EN ISO 11925-2 standard and meet the requirements of the German DIN 4102-B2 fire safety standard and the European DIN EN 13501-1, fire safety class E. This means that it meets the important criterion for use as a roll-up door in the construction industry in Europe with compliance with DIN standards in terms of fire behavior. The roll-up door material therefore offers the highest safety standard in use.

More

S13-0 FLT PSP

Food

Our new ProSnap (PSP) fastener is now available for Prolink series 13 with a pitch of 8 mm (0.31 inches). This is what’s known as a quick-release system to open and close the belt quickly and easily without any tools. This fastening system can be fitted to all series 13 variants.

More

S18-44 HDK 2.2 (High Deck)

Food

The Prolink Series 18 with a pitch of 25.4 mm (1.0 in.) has been extended by another variant and is preferably used in the food industry.

The new S18-44 HDK 2.2 (High Deck) variant has a latticed surface with a 44% open area which enables excellent airflow and drainage. The special High Deck design allows for trouble-free lateral push-off of the conveyed material while permitting a conveyed material width that exceeds the actual belt width.

More

S18-44 GRT 1.7

Food

This new Series 18 modular belt with 25.4 mm (1.0 in.) pitch allows excellent air circulation and drainage with its permeable (44%) surface. S18-44 GRT 1.7 (with Grid Top and for small curve radii) is primarily used in applications where there is little space. As the belt can cope very tight curve radii, the size and therefore the floorspace required for the conveyor is less. The advantages of the tight curve radius can be combined with the pull of variant S18-44 GRT 2.2. Please ask for S18 Combo!

More

E 12/3 U0/V/U4 MT green

Article number: 900427

Industrial Production

The new Transilon belt with PVC center layer was developed for the steel and automotive industry. The polyurethane top face coating makes the belts exceptionally durable and resistant to incisions. When optical sensors are used, light isn’t reflected due to the matte belt surface, therefore guaranteeing perfect sheet positioning. What’s more, metal sheets have far better grip on a matte surface.

More

E 12/3 U0/U4 MT green

Article number: 909224

Industrial Production

The high quality Transilon type was developed for the steel and automotive industry. Shore A 92 polyurethane top face coating makes it exceptionally durable and resistant to incisions – which is a key benefit when products with sharp edges are processed. When optical sensors are used, light isn’t reflected due to the matte belt surface, therefore guaranteeing perfect sheet positioning. What’s more, metal sheets have far better grip on a matte surface.

More

FTP2-150 P LZXF-NA black

Article number: 908062

Food

The new 2-ply FTP2-150 P LZXF-NA black Transtex belt is ideal for horizontal and inclined conveying of bulk material and is primarily used for applications with rolling support as the rolling resistance is very low. The large Z-pattern provides good grip of bulk material, even in sections at a gradient and therefore guarantees processes run smoothly (e.g. when conveying grains or seeds). Although FTP2-150 P LZXF-NA black is not approved for direct contact with unpackaged foodstuffs, 908062 can be used in primary agricultural food production (e.g. when harvesting grains, legumes, nuts and seeds).

More

E 12/2 0/V6 MT-C -SE black

Article number: 906882

Logistics

E 12/2 0/V6 MT-C -SE black (art. no. 906882) belt was developed for curved conveyors and can be used for conveying baggage at airports and parcels in distribution centers etc. With this new belt type, a belt with a matte surface in the flame-retardant (SE) version is available for the first time for the logistics segment. The very good accumulation functionality rounds out its exceptional profile of characteristics.

More

E 4/2 U0/P2 MT-HC+ grey/black

Article number: 906897

Textile Industry

The new E 4/2 U0/P2 MT-HC+ grey/black Transilon type was developed for high-speed crosslappers used in nonwoven production. With a High Conductivity Plus (HC+) design, it offers significantly improved electrostatic build-up than comparable standard grades. The new conductive black intermediate layer makes the underside look dark grey.

More

Prolink Series 17

Industrial Production | Logistics

Despite being very lightweight, the robust design of the new series 17 offers exceptional rigidity and tensile strength. The enhanced design combines an efficient use of materials with exceptional tensile force in the belt of up to 32 N/mm.

More

E 3/1 X0/U2D BT-HACCP-FF-PS blue FDA

Article number: 904490

Food

The new Transilon belt type E 3/1 X0/U2D BT-HACCP-FF-PS blue FDA was originally developed for manufacturing sticky rice products, The type has since proven themselve as excellent belts for dough processing.

One example where 904490 has proved to be ideal is the encrusting machines belonging to a global OEM of automatic production lines for dough and confectionery products.

More

E 8/2 TX0/V4 S/GSTR 2.4 black

Article number: 909210

Sports & Leisure

The new Transilon E 8/2 TX0/V4 S/GSTR 2.4 black (art. no. 909210) was custom-developed for professional, medium-duty to heavy-duty fitness equipment. The lack of noise and low energy costs are two enormous benefits to owners of gyms with hundreds of treadmill belts.

More

E 4/2 U0/U2D BT-HACCP-FF-PS white FDA and E 4/2 U0/U2D BT-HACCP-FF-PS blue FDA

Article numbers: 904492 and 904493

Food

The two new Transilon belts were custom-developed for dough processing applications with the focus on forming croissants. In terms of traction, the slightly raised surface pattern is ideal for croissant forming. What’s more, due to its exceptional release properties, the dehesive belt surface complies with the food industry’s hygiene concepts.

More

TR 20E-23 HC FBRC/FSTR black/grey

Article number: 822171

Paper & Printing

The new machine tape’s advantage is that on-site belt fitting is easier. The thermoplastic coating makes the Z-splice virtually invisible. The belt’s design with its thickness of 2.3 mm and the position of the tension member are vital for use in automated sheeter with subsequent feeder process rolls of paper. The abrasion-resistant, Medium Grip top face coating enables excellent product grip and exact positioning of the sheets before they enter the printers. The underside fabric has ideal friction coefficients when the product is used as a vacuum belt. The fabric design meets the stringent demands in terms of stable tension, even in perforated belts.

More

UU 40A-9 GL green

Article number: 822170

Textile Industry

The new Extremultus UU 40A-9 GL green (art. no. 822170) is used as a power transmission belt in old rapier weaving machines made by Sulzer-Rüti.

More

E 8/2 TX0/V4 GSTR black

Article number: 907216

Sports and Leisure

The new E 8/2 TX0/V4 GSTR black Transilon type (art. no. 907216) is suitable for treadmills subjected to average loads in homes or gyms. The fabric on the belt’s underside has a new Texglide impregnation and a consistently low friction coefficient (COF) over a long period of time. The new treadmill belt is pleasant for users to run on and allows treadmill owners to make significant energy savings thanks to low power consumption.

More

E 8/2 TX0/U5 S/GSTR black

Article number: 907225

Sports and Leisure

The new Transilon E 8/2 TX0/U5 S/GSTR black belt (art. no. 907225) was developed for treadmills and stands apart for its virtually noise-free operation. The 907225 has a “silent” fabric with a new pattern, which cuts the noise produced between the treadmill belt and the slider bed significantly. The underside fabric comes with a Texglide finish, meaning very little power consumption, even during heavy-duty use. The belt glides very smoothly over the slider bed and feels very pleasant to runners.

More

E 4/H U8/U8 MT/MT-NA MD blue FDA

Article number: 906825

Food

The new Transilon E 4/H U8/U8 MT/MT-NA MD blue FDA (art. no. 906825) was developed because of special requirements in the food industry. The 906825 is a metal-detectable version of the familiar E 4/H U8/U8 NP/MT-NA blue FDA belt (art. no. 907139).

The ability to detect foreign bodies is a key requirement for compliance with quality-management and HACCP concepts in food production. In addition to a metal-detectable urethane coating, the new belt type has a matte surface on both sides so that the belt is very easy to clean.

More

E 8/2 TX0/U4 S/CAS black

Article number: 909204

Sports and Leisure

The new belt type was developed as a treadmill belt for professional, heavy-duty gym equipment. It has a robust polyurethane top face coating with a deep asphalt pattern (CAS = coarse asphalt structure) that still remains visible and looks like new, even when it’s been running for a long time. This design of the underside means that the belt runs very quietly at high speeds and ensures that the friction coefficient on the underside is very low. This enables the belt to run smoothly and guarantees low power costs.

More

E 8/H U0/U3 SP-HACCP white FDA

Article number: 906894

Food

The new belt type E 8/H U0/U3 SP-HACCP white FDA, with a star pyramid pattern (SP), is particularly well suited for very long cooling tunnels in chocolate manufacturing due to the dimensionally stable, low-stretch high-tech polyester fabric in warp and weft. The belt lies completely flat on the cooling areas, so that the process is seamless.

More

E 12/2 0/V3 MT-C grey

Article number: 901006

Logistics

The new E 12/2 0/V3 MT-C grey (art. no. 901006) belt was developed for curved conveyors and are primarily used for laundry machines. This belt type can also be used for other applications.

More

E 3/1 X0/U2D BT-HACCP-FF-PS white FDA

Article number: 904486

Food

The new belt type has an excellent track record in dough processing. The combination of the positive Broken Twill (BT) surface pattern and the special dehesive urethane coating makes it a unique, functional conveyor belt for food production. With regard to the product, the flat surface pattern offers excellent grip and release and is comparable with an impregnated fabric surface, but provides all the hygiene benefits of a completely sealed surface. What’s more, the belt has a dirt- and water-resistant impregnation on the underside and pre-shrunk Frayfree fabric.

More

E 12/2 U0/V/U0 C anthracite

Article number: 909220

Logistics

The new E 12/2 U0/V/U0 C anthracite belt (art. no. 909220) was developed as a curved conveyor belt. It’s wear resistant polyurethane impregnation on the top face makes it particularly suitable for use on curved belt conveyors with accumulation capabilities in parcel conveying.

More

Prolink series 8 - S8-0 FRT1 PP BL (R4 BG) W229

Industrial Production

The new Prolink variant complements the existing series 8 FRT modules but offers a tougher FRT surface while maintaining the good grip. The harder surface makes the belts service life much longer, particularly when abrasive or sharp-edged products are conveyed.

Durability is even improved when the modules are subjected to significant point loads. The new FRT module can be used in all applications where belts need to be durable, incision-resistant and offer good product grip.

More

E 4/2 U0/U/S2 HACCP-FF white FDA and E 4/2 U0/U/S2 HACCP-FF blue FDA

Article numbers: 906877 and 901000

Food

The special feature of these silicone types is the 2-layer Frayfree fabric structure in combination with a polyurethane intermediate layer, which guarantees that the splice is very strong. The belts are laterally stiff but very flexible lengthways and therefore ideal for small pulley diameters. The smooth silicone top face coating offers very good grip. The release properties are very important especially for incline and decline conveying or for good product positioning e.g., in the dough processing, the meat and poultry industry, and the confectionery or packaging industry (foil packaging).

More

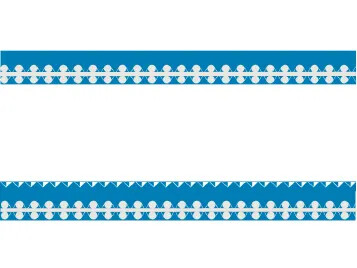

EL 0/U2 MT-HACCP blue FDA and EL 0/U3 NP-HACCP blue FDA

Article numbers: 906891 and 900458

Food

The two new EL types with semi-elastic fabric and a TPU coating comply FDA and EU requirements for belts in direct contact with foodstuffs. They are used where centre distances are short or on conveyors without any control devices or take-up units. All very short conveyors, particularly in the dough-processing, the meat and poultry or in the confectionery industries, but also outside the food industry are conceivable applications.

The special, single-ply fabric design prevents any warp thread distortion so that the belts can be correctly tracked and centred and the elastic warp threads excels in ensuring the belt keeps on track.

More
