Marmoleum

Installation

Marmoleum Sheet

Marmoleum Sheet Installation Guidelines


Heat Welding Marmoleum Sheet Installation Guidelines


Marmoleum Sheet on Vertical Applications Installation Guidelines


Flash Coving Marmoleum Installation Guidelines


General Installation Guidelines


Substrate Evaluation & Preparation Guidelines

Marmoleum Modular

Marmoleum Tile Installation Guidelines


Adhesive Recommendations Chart



Adhesive Recommendations Chart (Spanish)



Adhesive Fast Facts



Adhesive Fast Facts (Spanish)

Adhesives

L 885

Acrylic polymer adhesive. Recommended for use with Marmoleum Sheet (Real, Striato, Vivace, Fresco, Concrete, Piano, Graphic, Walton, MCS, & Decibel) and Corkment underlayment. Contains 0 VOC’s.

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Packaging:1 Gallon or 4 Gallon
Max MVE:8 lbs per 1,000 ft²
Max RH:85%
Max pH:10
Adhesive Color:Light Tan
Trowel Notch:1/16” x 1/16” x 1/16” Square Notch
Spread Rate:125 ft² per Gallon

L 885 Adhesive

T 940

Acrylic polymer adhesive. Recommended for use with Marmoleum Tile (MCT, Modular, & Dual). Contains 0 VOC’s.

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Packaging:1 Gallon or 4 Gallon
Max MVE:5 lbs per 1,000 ft²
Max RH:75%
Max pH:10
Adhesive Color:White
Trowel Notch:1/16” x 1/16” x 1/16” Square Notch
Spread Rate:125 ft² per Gallon

T 940

Sustain 885m

Dual acrylic polymer adhesive. Recommended for use with Marmoleum Sheet & Tile (Real, Striato, Vivace, Fresco, Concrete, Piano, Graphic, Walton, MCS, Decibel, MCT, Modular, & Dual) and Corkment underlayment. Contains 0 VOC’s.

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Packaging:1 Gallon or 4 Gallon
Max MVE:8 lbs per 1,000 ft²
Max RH:85%
Max pH:10
Adhesive Color:Grey
Trowel Notch:1/16” x 1/16” x 1/16” Square Notch
Spread Rate:125 ft² per Gallon

Sustain 885m

Sustain 1195

Dual acrylic polymer adhesive. Recommended for use with Marmoleum Sheet & Tile (Real, Striato, Vivace, Fresco, Concrete, Piano, Graphic, Walton, MCS, Decibel, MCT, Modular, & Dual) and Corkment underlayment. Contains 0 VOC’s.

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Packaging:4 Gallon
Max MVE:10 lbs per 1,000 ft²
Max RH:95%
Max pH:11
Adhesive Color:Green
Trowel Notch:1/16” x 1/16” x 1/16” Square Notch
Spread Rate:125 ft² per Gallon

Sustain 1195 Adhesive

L 910W

Acrylic polymer adhesive. Recommended for use with Bulletin Board and wall & countertop Marmoleum Sheet applications. Contains 0 VOC’s.

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)


Packaging:1 Gallon or 4 Gallon
Max MVE:n/a
Max RH:n/a
Max pH:n/a
Adhesive Color:Light Tan
Trowel Notch:1/16” x 1/16” x 1/16” Square Notch or 1/8" x 1/8" x 1/8" V Notch
Spread Rate: 125 ft² per Gallon when using the 1/16” x 1/16” x 1/16” Square Notch or 90 ft² per Gallon when using the 1/8" x 1/8" x 1/8" V Notch

L 910W Adhesive

660 (2 Part)

Two part polyurethane adhesive. Recommended for use with all Forbo Flooring products. VOC Emissions: <12 grams per liter (calculated per CA South Coast Rule 1168)

Part A SDS
Part B SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Packaging:1/2 Gallon, 1 Gallon, or 2 Gallon
Max MVE:6
Max RH:80%
Max pH:9
Adhesive Color:Grey
Trowel Notch:1/16” x 1/16” x 1/16” Square Notch
Spread Rate:110-120 ft² per Gallon

Forbo 660 (2 Part)

Floor Care

Our linoleum floors are easy to clean and maintain thanks to their durable Topshield2 finish. Marmoleum with Topshield2 is the only resilient flooring with an occupancy-ready finish. This means that at the time of installation, cleaning with a neutral pH cleaning solution is all that is necessary. The Topshield2 finish also provides exceptional performance against soiling, staining, scratching, and scuffing. Topshield2 has been designed to create a Marmoleum that meets the demands of everyday use and is even more resistant to dirt pick-up, less prone to wear and has improved resistance to scratches and stains, and thus creating a floor that demonstrates a lasting performance over time.

Marmoleum Floor Care Guidelines


Marmoleum Maintenance Guidelines for Wall / Furniture Applications


Floor Care Chemical Application Chart

Floor Care Products

Forbo Neutral pH Cleaner (Quart)

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: 1/2 - 1 Ounce per 1 Gallon of Water
Applicator: Mop or Auto Scrubber


Neutral Ph Cleaner

Forbo Neutral pH Cleaner (Gallon)

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: 1/2 - 1 Ounce per 1 Gallon of Water
Applicator: Mop or Auto Scrubber


Neutral Ph Cleaner

Forbo Spray Buff (Quart)

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: Varies
Approximate Spread Rate: 5,000 - 6,000 ft²
Applicator: Sprayer & Buffing Pad


Spray Buff

Forbo Mop On Restorer (Gallon)

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: 16 oz. to 1 Gallon of Water (1:8)
Approximate Spread Rate: 128 Gallons of Cleaner
Applicator: Micro-Fiber Applicator or Finish Mop


mop on restorer

Forbo Heavy Duty Cleaner (Quart)

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: 4 oz. to 1 Gallon of Water (1:32)
Applicator: Mop or Auto Scrubber


Heavy Duty Cleaner

Forbo Heavy Duty Cleaner (Gallon)

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: 4 oz. to 1 Gallon of Water (1:32)
Applicator: Mop or Auto Scrubber


Heavy Duty Cleaner

Forbo Matte Floor Finish (Quart)

Forbo's Matte Floor Finish should be used for commercial applications.

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: 1 - 2 Coats
Approximate Spread Rate: 450 – 550 ft²
Applicator: Micro-Fiber Applicator or Finish Mop


Matte Finish

Forbo Matte Floor Finish (Gallon)

Forbo's Matte Floor Finish should be used for commercial applications.

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: 1 - 2 Coats
Approximate Spread Rate: 1,800 – 2,200 ft²
Applicator: Micro-Fiber Applicator or Finish Mop


Matte Finish

Forbo Gloss Floor Finish (Quart)

Forbo's Gloss Floor Finish should be used for commercial applications.

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: 2 - 3 Coats
Approximate Spread Rate: 450 – 550 ft²
Applicator: Micro-Fiber Applicator or Finish Mop


Gloss Finish

Forbo Gloss Floor Finish (Gallon)

Forbo's Gloss Floor Finish should be used for commercial applications.

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: 2 - 3 Coats
Approximate Spread Rate: 1,800 – 2,200 ft²
Applicator: Micro-Fiber Applicator or Finish Mop


Gloss Finish

Forbo Adhesive Remover (Quart)

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: Varies
Approximate Spread Rate: Varies
Applicator: Brush, Cloth, or Sponge


Adhesive Remover

Forbo Residential Floor Finish (Quart)

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: 1 – 2 Coats
Approximate Spread Rate: 450 – 550 ft²
Applicator: Damp Mop, Sponge, or Applicator


Residential Finish

Forbo Residential Floor Finish (Gallon)

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: 1 – 2 Coats
Approximate Spread Rate: 1,800 – 2,200 ft²
Applicator: Damp Mop, Sponge, or Applicator


Residential Finish

Ready To Use Neutral pH Cleaner (Quart)

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: Ready to Use
Applicator: Mop or Auto Scrubber


Ready to Use Cleaner

Ready To Use Neutral pH Cleaner (Gallon)

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: Ready to Use
Applicator: Mop or Auto Scrubber

Ready to Use Cleaner

Residential Ready to Use Floor Finish Remover (Gallon)

SDS
Technical Data Sheet
Technical Data Sheet (Spanish)

Amount per Use: Ready to Use
Applicator: Mop


Ready to use Finish Remover

Tools & Accessories

Wall Base / Welding Rods / Underlayment Panels

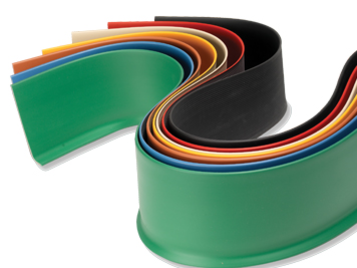

Wall Base

MSDS
Technical Data Sheet
Brochure

Gauge: 1/8”
Height: 4” or 6”
Style: Straight or Cove
Packaging: 4” – 120’ per carton or 6” – 96’ per carton


Wall Base

Marmoweld Uni (Solid Color)

After installation, Forbo's linoleum floorings can be hot-welded for functional, decorative and/or hygienic reasons. Marmoweld Uni is available in plain colors that perfectly suit the flooring collections.

MSDS
Technical Data Sheet


Package:50 m
Colors:All Marmoleum colors



Marmoweld_Uni

Marmoweld MC (Multi Color)

After installation, Forbo's linoleum floorings can be hot-welded for functional, decorative and/or hygienic reasons. The patented multi-colored Marmoweld MC allows creating invisible seams.

MSDS
Technical Data Sheet

Package:50 m
Colors:Select Marmoleum Colors


Marmoweld_Multi

Forbo QuickFit Panels

The Forbo Quickfit system comprises self-adhering MDF panels and damp-proof sound insulating Forbo foam. Forbo Quickfit offers: A rapid, smooth finish. Quick and easy installation. No visible subfloor seams. Excellent moisture barrier. Easily removable. Each pack will cover 3.6 m².

Installation Guidelines

quickfit panels

Tools

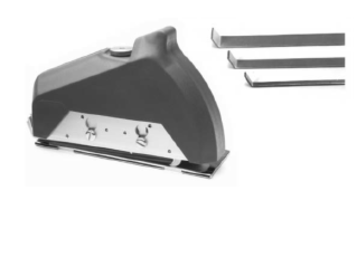

T103 Seam & Strip Cutter

Designed to score and trim the factory edges of linoleum products, leaving the appropriate bevel (undercut) easily and accurately in one step. It can be adjusted to any gauge of material from 2.0 mm up to 6.0 mm. It comes with three spacers to trim 10, 15, 20 or 30 mm strips. It uses Straight or Hooked Blades.

t103

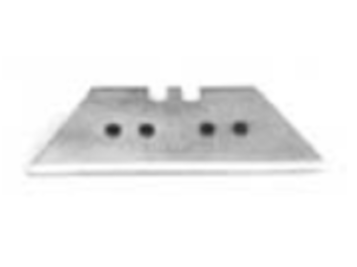

B100 Straight Blade

Blade used with the Forbo Seam and Strip Cutter. Available in packs of 20.

sb

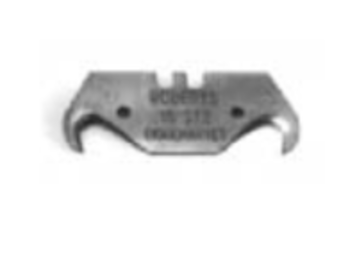

B300 Hooked Blade

Blade used with the Forbo Seam and Strip Cutter. Available in packs of 20.

hooked blades

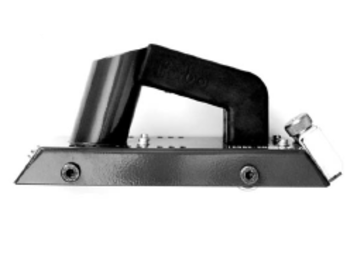

T133 Forbo Groover

A push groover used for correctly grooving out seams in linoleum and homogeneous vinyl for heat welding. It uses the T116 blade, which is the same blade used for the hand groovers for a consistent groove throughout.

groover

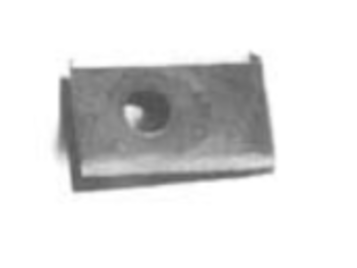

T116 Spare Groover Blades

Used with the Forbo Groover, Bent Hand Groover, Straight Hand Groover and Circle Maker. Available in packs of 10.

spare groover blade

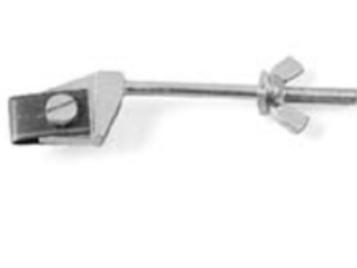

T105 Thermo Groover

Used in conjunction with a welding gun for grooving.

T105

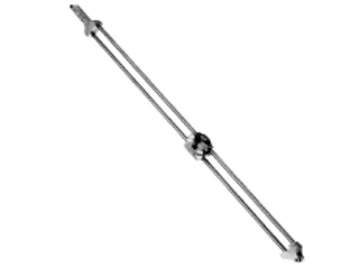

T101 Long Scriber

Used for accurately scribing vinyl and linoleum products. The Long Scriber can
be fitted with either a scribe pin or a scribe blade (both included).

long scribber

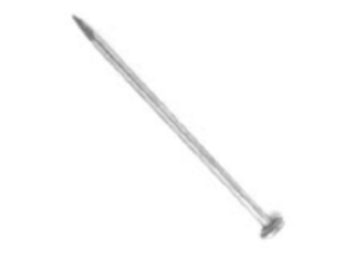

T149 & T149.25 Scribe Pins

Replacement pins for the Long Scriber (0.063” diameter x 1.590” with
brass head). Available in packs of 100 (T149) or packs of 25 (T149.25).

pins

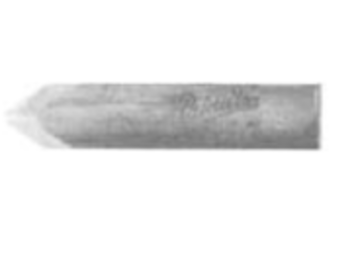

T156 Long Scriber Blades

Replacement blades for the Long Scriber (0.058” diameter x 0.063”). Available in packs of 6.

long scribber blades

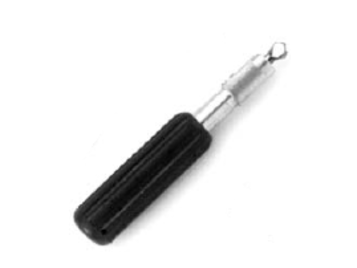

TT200 X-Acto Knife

Used for grooving material as well as trimming welding rod on inside and
outside flash coved corners. It can be used with TT210 Round Blades, TT230 Triangular Blades or TT240 Flat Blades (blades not included).

xacto knife

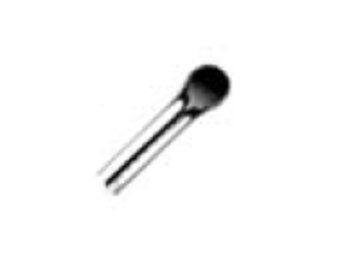

TT210 X-Acto Knife Round Blades

Round blades used with X-Acto Knife.

round blades

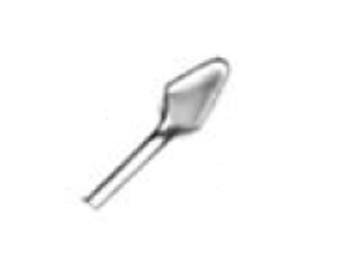

TT230 X-Acto Knife Triangular Blades

Triangular blades used with X-Acto Knife.

triangular blades

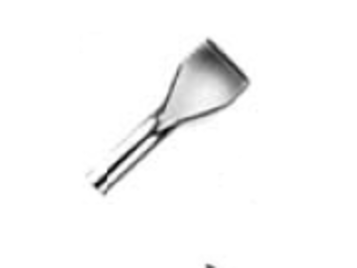

TT240 X-Acto Knife Flat Blades

Flat blades used with X-Acto Knife.

flat blades

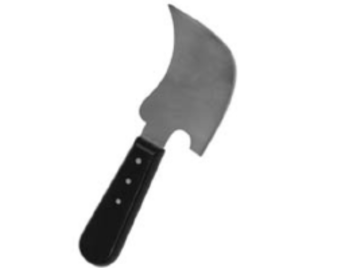

T117 Crescent Knife

Used for trimming welding rod flush with the flooring surface. It is also used in conjunction with the Trim Plate.

crescent knife

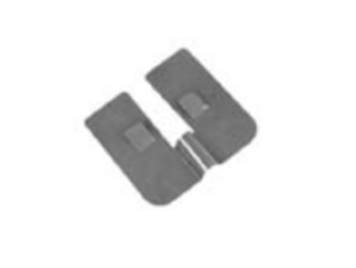

T118 Trim Plate

Used for the first trimming on heat welds. The Crescent Shaped Knife slides into the Trim Plate.

trim plate

Accessories

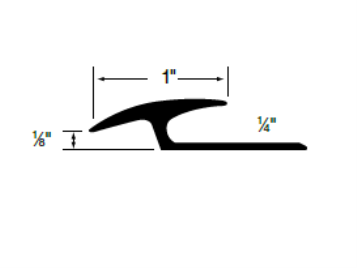

Tile-Carpet Joiner 1/8"

Product ID: ACC01
Pieces per Carton: 20
Length: 12’


ACC01

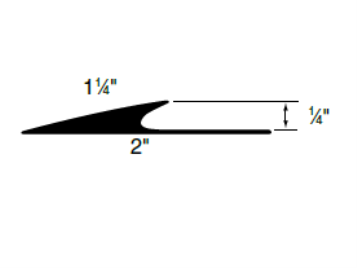

Carpet Reducer 1/4"

Product ID: ACC02
Pieces per Carton: 20
Length: 12’


ACC02

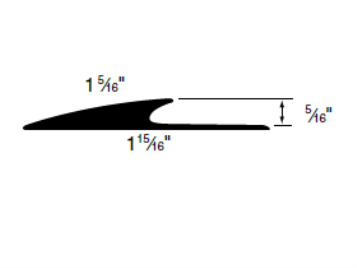

Carpet Reducer 5/16"

Product ID: ACC03
Pieces per Carton: 20
Length: 12’


ACC03

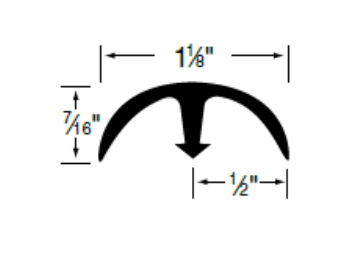

Snap-Down Divider 1 1/8"

Product ID: ACC04
Pieces per Carton: 20
Length: 12’


ACC04

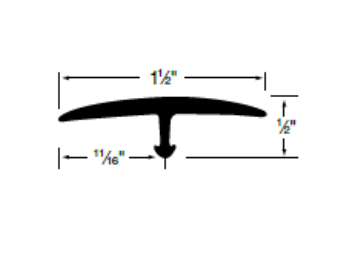

Snap Down Divider 1 1/2"

Product ID: ACC05
Pieces per Carton: 20
Length: 12’


ACC05

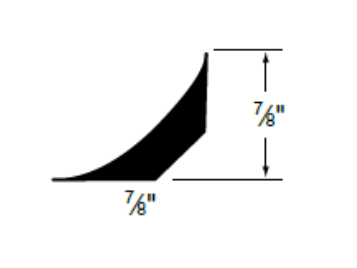

Cove Stick

Product ID: ACC06
Pieces per Carton: 20
Length: 12’


ACC06

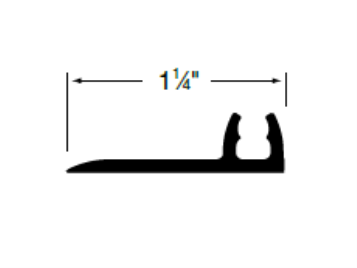

Pinless Metal Track

Product ID: ACC07M
Pieces per Carton: 20
Length: 12’


ACC07M

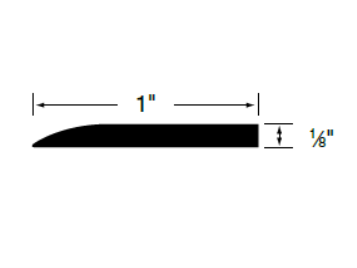

Tile Reducer Strip 1/8"

Installation Accessories must be purchased by the carton.

Product ID: ACC09
Pieces per Carton: 50
Length: 3’


ACC09

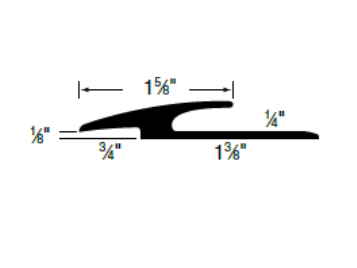

Resilient Carpet Joiner

Product ID: ACC12
Pieces per Carton: 20
Length: 12’


ACC12

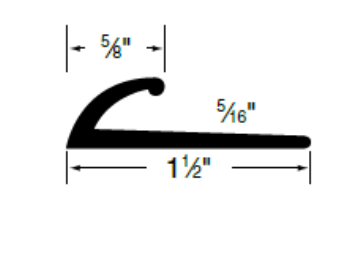

Carpet Cove Cap

Product ID: ACC13
Pieces per Carton: 20
Length: 12’


ACC13

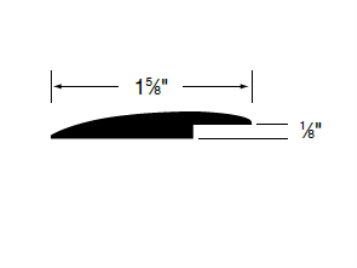

Underslung Reducer

Product ID: ACC14
Pieces per Carton: 20
Length: 12’


ACC14

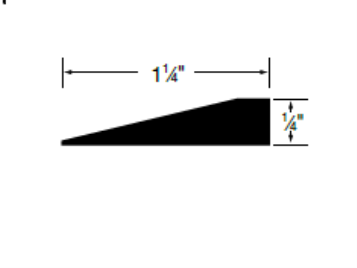

Reducer Strip 1/4"

Product ID: ACC15
Pieces per Carton: 20
Length: 12’


ACC15

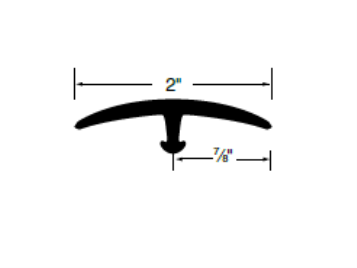

Snap-Down Divider 2"

Product ID: ACC17
Pieces per Carton: 20
Length: 12’


ACC17

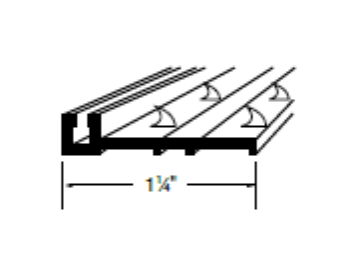

Metal Track with Pins

Product ID: ACC18M
Pieces per Carton: 20
Length: 12’


ACC18M

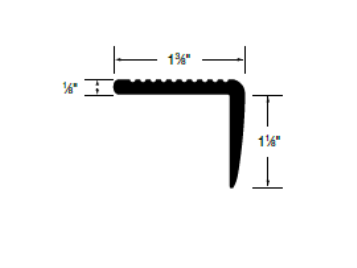

Stair Nosing

Product ID: ACC20
Pieces per Carton: 20
Length: 12’


ACC20

Welding

To weld or not to weld?

In most of the cases welding a Marmoleum floor is not required. Skilled installers can make perfect joints without using a welding cord. However, sometimes local laws or regulations could make that you need to make sure you put a welding cord between two sheets.

For both situations Forbo Flooring offers the best solutions. Think about installation guides, instruction videos and welding rods specifically developed for Marmoleum floors.

Visit our Net fit or welding installation page to get more information.

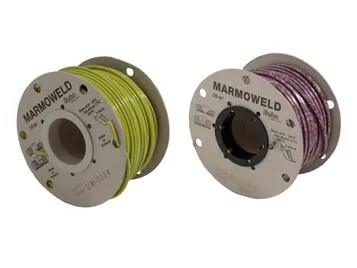

Multi colour welding rod

Marmoweld

Marmoweld is a welding rod specifically developed to weld Marmoleum. For all Marmoleum colours we have developed a matching Marmoweld colour. It is available in uni-colour (round rod) or in multi colour (square rod).

On the Marmoweld page you can find more information about these products.

Welding rod uni vs multi
