Siegling Linpack

Siegling Linpack

Folder and Carrier Belts with Linatex Top Face

Siegling Linpack Folder and Carrier Belts with Linatex Top Face

Siegling Linpack belts are mainly used as

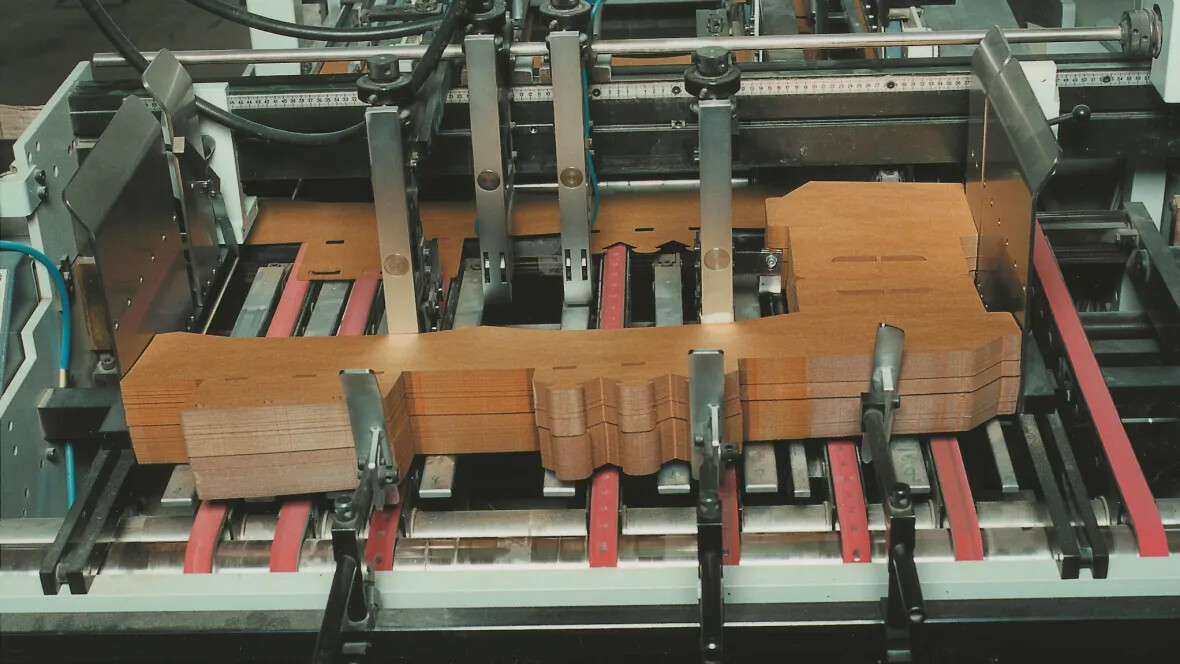

  • feeder belts on box folders and labelling and creasing machines
  • accelerator belts in tin plate processing and on packaging and glueing machines
  • folder belts on heavy-duty folders in the heavy carton and corrugated cardboard industry
  • conveyor belts with a high friction coefficient

Siegling Linpack belts with Linatex top face are characterized by

  • good grip
  • a high friction coefficient
  • high resistance to abrasion

Feeder belts / Folder belts

AntistaticTotal thickness ground3) from/to [mm]FW-value approx. [N/mm width]Shore A hardness of the top facedmin approx. [mm]*3Operational temperature allowed [°C]
RT 6-L1) light red3-8638-4030/65+10/+70
R 6-L1) light redyes3-8638-4030/65+10/+70
R 10/2-L1) light redyes4-81038-4040/65+10/+70
R 10/3-L1) light redyes8-151038-4065/120+10/+70
UU 20 U-L1) light redyes4-74)38-4030/60+10/+70
UU 60 U-L1) light redyes8-124)38-4030/100+10/+70

1) When ordering please indicate the total thickness after the coating letter L or U, e.g. R 10/2 – L 8.
3) Within the total thickness a graduation in one tenth of 1 mm is possible.
4) Depending on the thickness of the coating. Elongation at fitting:
6 % (UU 20 U – L) or 4 % (UU 60 U – L).
* Established in line with ISO 21181:2005
*2 Shaft load at 1 % elongation, measured in N/mm belt width.
*3 The smallest permissible pulley (or roller) diameters depend on the belt thickness and were established at normal ambient conditions. Low temperatures or particularly low humidity require larger diameters.

Folder and carrier belts

AntistaticTotal thickness non-ground2) from/to [mm]Effective pull at 1% elongation (k1% relaxed) [N/mm width]*Shore A hardness of the top facedmin approx. [mm]*3Operational temperature allowed [°C]
T1-L1) light redyes3.5 - 7*5)38 – 4040/60+10/+70
T2-L1) light redyes5.0 - 12.5*5)38 – 40100+10/+70

1) When ordering please indicate the total thickness after the coating letter L or U, e.g. R 10/2 – L 8.
2) The following thicknesses are possible in the non-ground version:
T 1 – L = 3.5/4.5/6/7 mm
T 2 – L = 5/6.5/8.5/9.5/10.5/12.5 mm
1) When ordering please indicate the total thickness after the coating letter L or U, e.g. R 10/2 – L 8.
2) The following thicknesses are possible in the non-ground version:
T 1 – L = 3.5/4.5/6/7 mm
T 2 – L = 5/6.5/8.5/9.5/10.5/12.5 mm
3) Within the total thickness a graduation in one tenth of 1 mm is possible.
5) On request
* Established in line with ISO 21181:2005
*3 The smallest permissible pulley (or roller) diameters depend on the belt thickness and were established at normal ambient conditions. Low temperatures or particularly low humidity require larger diameters.

Available as

  • open roll material
  • prepared material to be made endless with mechanical fasteners
  • finished belts spliced to size
