Power Transmission Belts

Power Transmission Belts

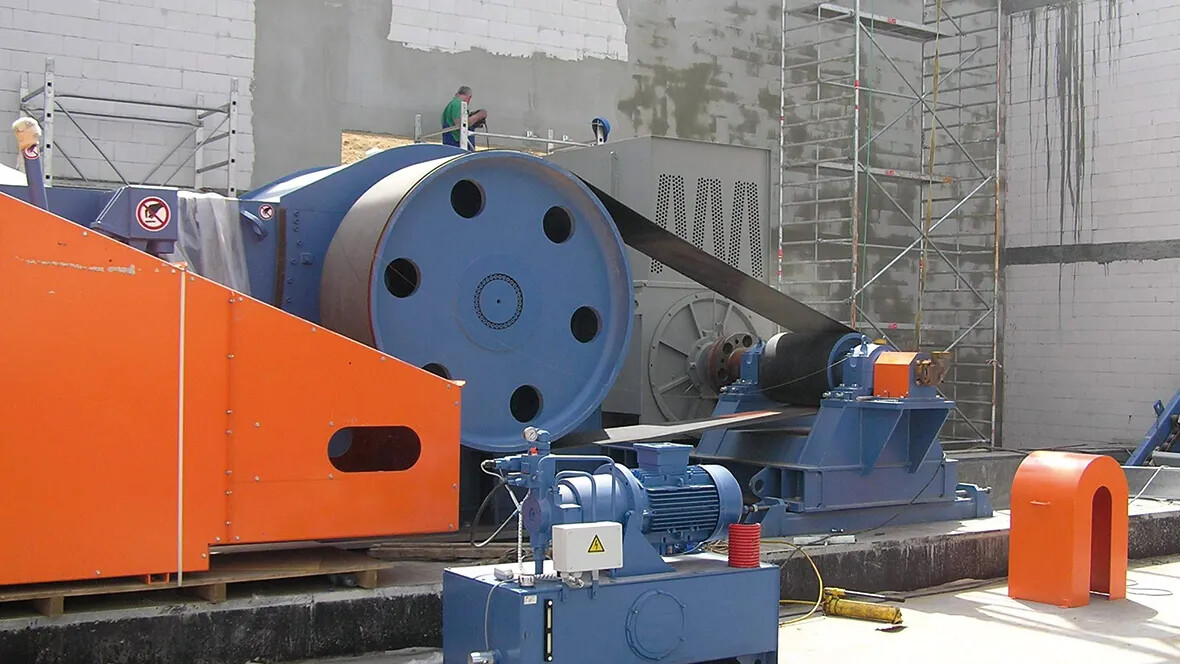

0760H Trommelhacker

Compared with other drive components, Siegling Extremultus power transmission belts stand apart for a much greater degree of efficiency (≥ 98%), very precise synchronicity and simple handling capabilities.

They also excel as regards:

  • consistent speed and long service lives
  • short take-up ranges, little creep
  • good damping capabilities
  • excellent performance up to 1850 kW capacity
  • their ability to easily handle bevel and cone drives in which the belt rotates on its longitudinal axis

0631H EX ANTRIEB

Siegling Extremultus power transmission belt are available in different designs:

  • the Polyester line with a thermoplastic traction layer with polyester fabric (also truly endless)
  • the Aramide line with a thermoplastic traction layer with blended fabric with a high modulus and aramid warp (also truly endless)
  • the Polyamide line with a traction layer made of highly oriented polyamide sheet

They’re supplied as rolls, prepared for splicing or have already been fabricated.

Standard coating combinations

LT=leather underside, fabric top face
LL=leather underside and top face
GT=elastomer G underside, fabric top face
GG=elastomer G underside and top face
