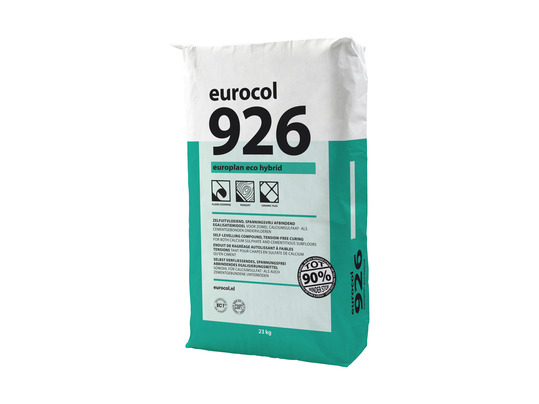

926 EUROPLAN ECO HYBRID

926

Self-leveling, low-tension, leveling compound for leveling cement- and anhydrite-based screeds, mastic asphalt (allow a maximum layer thickness of 5 mm for mastic asphalt), magnesite, wood-granite chipboard, or existing tile. Suitable for use under parquet floors, pumpable, and can be finished after 12 hours for layers up to 5 mm thick. Layer thickness: from 2 mm to a maximum of 10 mm. Suitable for indoor use. Thanks to EMICODE EC 1PLUS (very low emissions), it is also suitable for BREEAM projects.

  • 926-safety data sheet uk.pdf

    926-safety data sheet uk.pdf

  • 926-ec 1 plus licence uk.pdf

    926-ec 1 plus licence uk.pdf

  • pdf-product-specification.pdf

    pdf-product-specification.pdf

  • Product Typification
    Self-leveling, low-tension, leveling compound for leveling cement- and anhydrite-based screeds, mastic asphalt (allow a maximum layer thickness of 5 mm for mastic asphalt), magnesite, wood-granite chipboard, or existing tile. Suitable for use under parquet floors, pumpable, and can be finished after 12 hours for layers up to 5 mm thick. Layer thickness: from 2 mm to a maximum of 10 mm. Suitable for indoor use. Thanks to EMICODE EC 1PLUS (very low emissions), it is also suitable for BREEAM projects.
    Basis : Alpha-calcium sulphate hemihydrate in combination with special cements.
    Colour : Taupe.
    Consistency : Powder.

    Product advantages:
    • EMICODE EC 1PLUS (very low emissions)
    • Fast binding
    • Low tension
    • High compressive strength
    • Excellent flow properties
    • Pumpable
    • Low dust
    • Up to 5 mm layer thickness can be further finished after 12 hours
    • layer thickness 10 mm
    • Suitable for underfloor heating

  • Performances
    Bending Strength : According to NEN-EN 13892-2 after 28 days ≥ 9 N/mm².
    Bureau Wheelchair resistance : From 2 mm layer thickness.
    Classification : GEV-EMICODE EC 1PLUS (very low emissions) tested in accordance with EN 13999-2/4. Suitable for BREEAM projects.
    Compressive strength : According to NEN-EN 13892-2 after 28 days ≥ 35 N/mm².
    Consumption : Approx. 1.6 kg/m² per mm layer thickness
    Flammability : Non-flammable.
    Passableness : 2-3 hours at 18-20 °C.*
  • Application

    For the levelling in layer thicknesses of 2 to 10 mm of cement- and anhydrite-bound screeds, mastic asphalt (for mastic asphalt, observe maximum 5 mm layer thickness), magnesite, wood granite chipboard or existing tiling.

    In case of pumping:

    First check with the pump supplier that the pump is suitable for all types of levelling. Pumping at too high a mixing speed can cause insufficient flow of the levelling compound.


  • Working Process
    Tools : Smoothing trowel or squeegee in combination with spiked roller, mixing pump unit.
    Mixing ratio : 23 kg 926 Europlan Hybrid Repair to 4.75 litres of water. 25 kg to 5.5 litres of water
    Waiting time : Allow to cure for 2 to 3 minutes after mixing.
    Processing time : Within 30 minutes of mixing.*
    Storage : Store in a cool and dry place
    Shelf Life : 12 months, in unopened packaging.
    Drying : Layer thickness 2 - 5 mm 12 hours*, 6 - 10 mm 24 hours*
    Sensitive to frost : No.

    * The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

    Consumption:
    Approx. 1.6 kg/m² per mm layer thickness

    Substrate:
    • 926 Europlan Eco Hybrid can be applied to any rigid, compression- and tension-resistant, stone-like subfloor. The subfloor must also be clean, permanently dry and free from grease and dirt, in accordance with the requirements of DIN 18 365.
    • Sand down calcium sulphate-bound subfloors (anhydrite) if necessary, then remove dust using an industrial vacuum cleaner.
    • Prime absorbent cement-based subfloors with 044 Europrimer Multi. Prime anhydrite floors with 043 Europrimer Alphy. In both cases, prime with the aid of a fur roller.
    • Thoroughly degrease smooth and closed subfloors (tile floors, granito, terrazzo, etc.) with 014 Euroclean. Remove the contamination and then, after sufficient drying, apply a thin but opaque layer of 044 Europrimer Multi using a foam roller. Old (waterproof) glue residues should also be primed in this way.
    • Remove contamination and loose parts from asphalt floors and bituminous surfaces. Then prime the surface with 044 Europrimer Multi. Maintain a maximum levelling layer thickness of 5 mm for this type of subfloor.
    • Pre-fill holes and damage in both anhydrite and sand-cement screeds with 946 Europlan Hybrid Repair. After complete drying, prime these areas with 043 Europrimer Alphy.
    • In the case of a sand-cement screed where a moisture barrier needs to be applied, repair holes and damage with 945 Europlan Solid. After complete drying, the moisture barrier can be applied.
    • Fix cracks and/or joints in the subfloor with 021 Euroblock Reno LE in combination with 063 Eurotape or 808 Eurojoint Connector, possibly with the addition of 846 Quartzsand.
    • Always consult our technical product information sheets. In case of doubt about the applications to be made, contact our Technical Advice Department in advance.


    User manual:
    • To prepare 926 Europlan Eco Hybrid, always use clean tools that are free of plaster/cement residues.
    • For manual processing, add 23 kg of 926 Europlan Eco Hybrid to 4.75 litres or 25 kg to 5.5 litres of cool and clean tap water.
    • Mix the mortar mechanically with the Eurocol 855 Mixer into a smooth and lump-free mass.
    • Allow the prepared mortar to cure for approx. 2-3 minutes, then stir the mortar briefly at low speed.
    • Apply the mortar to the floor within 30 minutes with a smoothing trowel or squeegee in a layer thickness of at least 2 mm. Then de-aerate the applied layer immediately with a spiked roller.
    • When pumping, set the mixing pump unit so that 4.75 litres of cool and clean tap water are added per 23 kg or 5.5 litres of cool and clean tap water are added per 25 kg of 926 Europlan Eco Hybrid.
    • Protect the freshly applied levelling layers against drafts and heating caused by direct sunlight.
    • It’s recommended not to sand or prime the dry levelling layer.
    • If sanding the applied levelling layer is necessary, use a sanding mesh grit 100 or finer. Make the floor thoroughly dust-free after sanding with an industrial vacuum cleaner. If necessary, prime the floor with 049 Europrimer ABS or 099 Dispersion Primer with a foam roller. Drying time approx. 1 hour.
    • Under normal conditions, the applied leveling layer is walkable after 2-3 hours, and with a layer thickness of 2-5 mm, it is ready for laying after 12 hours. For a layer thickness of 6-10 mm, this is 24 hours.
    • For detailed information on safety measures, refer to the safety data sheet on our website www.eurocol.nl.


    Working conditions:
    Required surrounding temperature : 18 - 23 °C.
    Temperature for material and subfloor : min. 15° - max. 20 ºC.
    Relative humidity : 40 - 70%.

    Underfloor heating:
    926 Europlan Eco Hybrid can be applied to underfloor heating. The start-up protocol of the underfloor heating must be fully executed in advance in accordance with the supplier’s guidelines. Switch off the heating (or set it to low) one day before levelling; then switch the heating back on again at least 24 hours after levelling, in steps of a maximum of 5°C water temperature per day. Ensure that the floor temperature does not exceed 29°C.





  • Quality and guarantee
  • Environment and health
    GISCODE : CP3 - Levelling compounds based on calcium sulphate and cement, calcium oxide content > 3%
    MSDS : For extensive safety and environmental information, we refer to our website www.eurocol.nl.


  • Articles
    ArticleDefinitionPackagingEAN-code
    926Europlan Eco Hybrid 23 kg bag8 710345 92600342/pallet
    926Europlan Eco Hybrid 25 kg bag0 402695 611682042/pallet
