eurocol

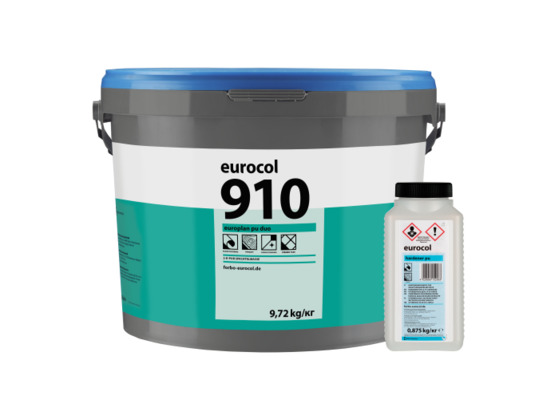

910 EUROPLAN PU DUO

910

Two-component PU-based levelling compound, self-levelling top- and underlay coat, highly durable, for indoor and dry outdoor application.

  • pdf-product-specification.pdf

    pdf-product-specification.pdf

  • safety data sheet_eurocol_910_europlan_pu_uk.pdf

    safety data sheet_eurocol_910_europlan_pu_uk.pdf

  • licence_910-pu duo_ec1rplus_2016_uk.pdf

    licence_910-pu duo_ec1rplus_2016_uk.pdf

  • safety data sheet_eurocol_910 hardener_pu_uk.pdf

    safety data sheet_eurocol_910 hardener_pu_uk.pdf

Product Typification


Basis : PUR polymer wit isocyanat hardener.
Colour : Gray.
Consistency : Thick liquid.

Product advantages:
  • Two-component, self-levelling, elasticized, heavy-duty special PUR floor levelling and repair compound for renovation and new construction.
  • Ideal for the renovation of old substrates (old, even elastic adhesive residues, blocking odours from the substrate).
  • Migration barrier on rubber granulate or cork-rubber insulation underlays.
  • Suitable as subfloor for laying elastic floor coverings and parquet after dull sanding with Eurocol adhesives approved for this purpose.
  • Can be used as a filling adhesive primer on mastic asphalt, metals.
  • As a highly durable 2-component PUR coating for industrial and sports facility construction.
  • Suitable
    • for filling cable ducts,
    • for filler work, also in the bathroom area (permanently dry substrate),
    • for permanently elastic subfloors in sports hall construction,
    • for putty work on glued elastomer/cork underlays,
    • can be used for crack repair on mastic asphalt,
    • for filling on fixed (also nubbed) elastomeric floorings (renovation).
  • The floor levelling compound is suitable for forklift loading.
  • Excellent adhesion on smooth surfaces, e.g. terrazzo, degreased metals, mastic asphalt.
  • No crack formation.
  • For interior and exterior use (permanently dry areas).
  • Very low emission. EMICODE EC 1 Plus R.

Performances

Consumption : approx. 1300 g/m²/mm, depending on the substrate.
Flammability : Non-flammable.
Frost resistance : Yes.
Passableness : Approx 6 – 8 hrs.
Special quality : Highly durable special PU -filling and repairing compound.
Specific weight : 1,45 g/cm³ (mixture)

Application

Application:
As levelling and repair compound.

Working Process

Storage : Store cool and dry in unopened packaging between +5 ºC and + 30 ºC.
Tools : Trowel or notched squeegee in combination with a spiked roller, mixing-device.
Mixing ratio : 100 parts by weight of component A 18 parts by weight of component B.
Processing time : Use within 40 minutes after mixing.*
Drying time : Approx 6 – 8 hrs.
Shelf Life : 18 months, in unopened packaging.
Cleaner : 815 HandClean, 358 ToolCleaner
Frost-proof : Yes.
Remarks :

Technical information and safety data sheets of other laying materials and floorings/parquet must be observed!

Tools and equipment must be cleaned with the designated cleaner before the product hardens. It is also advisable to wear suitable gloves when working with the levelling compound, as the reaction components penetrate deep into the skin pores and are difficult to remove.

Do not mix with other products, except for those that are expressly intended for this purpose.

Recommended primers:
Eurocol 042 Euroblock Turbo can be used without sanding
Eurocol 021 Euroblock Reno LE, applicable with sanding
Eurocol 028 Euroblock Rapid can be used with sanding
Eurocol 015 Euroblock MS can be used with sanding


* The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

Consumption:
approx. 1300 g/m²/mm, depending on the substrate.

Substrate:
  • The substrate must be permanently dry, resistant to pressure and tension, free from cracks and dust, even and free from layers that reduce adhesion.
  • Adhesion-reducing layers, old material residues must be removed by suitable mechanical measures in accordance with the specifications of DIN 18365/DIN 18356.
  • Old fixed floors, such as ceramic tiles, terrazzo, stone floors, are to be professionally cleaned with Eurocol 891 Euroclean Basic and sanded matt after drying.
  • A primer coat of Eurocol adapted to the substrate is to be pre-coated. Allow the applied primer to dry thoroughly.
  • Mastic asphalt, degreased metal surfaces, wood-based panels, old parquet/ planks without impurities can be levelled directly.
  • Cracks or joints (except structural expansion joints) must be closed with Eurocol Europlan 913 Silicate sealing compound.
  • Appropriately dimensioned Eurocol edge strips are to be used for rising building components.
  • In the event of defects, objections must be reported in writing.


User manual:
  • Before use, temper the product according to the processing conditions.
  • Empty the hardener component completely into the resin component and mix homogeneously with a suitable stirrer for approx. 5 minutes, also in the wall and bottom areas of the containers. Immediately decant into a clean container and mix again.
  • The levelling compound is applied with a spatula, trowel or trowel. A smooth, even surface is achieved by using a squeegee of a spiked de-aeration roller.
  • If a 2nd application is necessary, it can be applied after the first layer has hardened. In order to avoid adhesion problems, the first application layer, which has set tack-free, should be sanded matt.
  • To fill deeper channels or slots, the compound can be extended with dry quartz sand Europlan Sand 846 or 847. The mixing ratio can be adjusted up to a putty-like consistency. However, the self-levelling properties are strongly limited by this.
  • Similarly, mastic asphalt can be used to close cracks. Standard reinforcing clamps should be used and applied professionally. It is advantageous if the prepared mortar is applied to the freshly applied primer, consisting of 910 Europlan PU Duo, wet - in - wet. The flanks of adjoining screeds should also be primed.
  • Before laying a covering, the filled surface must be sanded with grid grain 100 and then vacuumed.
    During the subsequent laying of floor coverings, care must be taken to ensure that there is no absorbent subfloor. This must be taken into account when selecting the adhesives and fixings to be used, especially with regard to their flash-off time. Please consult our application technology for this. Depending on the type of flooring, suitable Eurocol reaction adhesives are preferred.

Working conditions:
Required surrounding temperature: min. 18°C.
Material and subfloor temperature: min. 15°C.
Relative humidity: 35 - 75%, recommended <65%.

The application must be carried out at a constant or falling temperature to prevent bubbles from forming due to warming air and its expansion in the substrate.
The surface must be protected from direct contact with water during the entire hardening phase.
Do not mix partial quantities!




Environment and health

Hazard Class : Hardener: Observe notes in the safety data sheet/label!
Safety and environment : Safety data sheets of Forbo Eurocol products according to EEG-guideline 91/155. Keep out of reach of children. Do not eat, drink or smoke while processing the product. Only give completely empty containers for recycling. Material residues can be disposed of as household waste.
MSDS : For extensive information about safety and environment we refer to our website www.forbo-eurocol.de.
GISCODE : RU1
Substances causing allergy : Hardener: contains isocyanate. May cause allergic reactions.


Articles

artikelproductnamepackagingshipping unit
910Europlan PUPE combi pack à 9,72 kg52/pallet
