eurocol
805 SARLIBASE TE

805

Decoupling underlay,
New - on - old installation. Moisture barrier.

  • pdf-product-specification.pdf

    pdf-product-specification.pdf

  • 805_installation instruction sarlibase te - licence_08.17 _uk.pdf

    805_installation instruction sarlibase te - licence_08.17 _uk.pdf

Product Typification

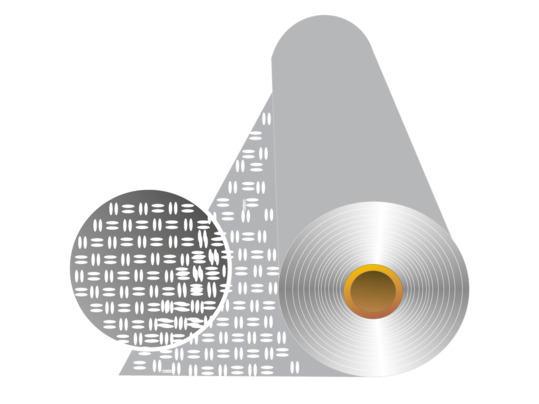

Basis : Compact PVC.
Colour : Gray.
Dimensions : Length 35 m. Width 2 m. Thickness 1,5 mm.

Product advantages:
  • Compact PVC underlay with embedded glass fibre fleece, with dimple equipment on the underside for under-ventilation in sheets.
  • For decoupling floors with residual moisture, after water damage, with dirt, with old adhesive layers (e.g. sulphite lye, bitumen adhesives), as well as a renovation underlay for new-on-old installation.
  • Underlay for bonding textile, PVC and CV coverings in strips.
  • The decoupling underlay can be used on cement screeds up to approx. 5CM%, on calcium sulphate-bound screeds up to approx. 1.5CM%.
  • for bridging cracks in the substrate up to 0.5 mm
  • adhesive-friendly surface
  • can be glued directly with floor coverings
  • impact sound absorbing
  • low installation height
  • especially for renovation work
  • easy to process, loose to lay, easy to remove
  • For indoors.

Performances

Weight : 1,3 kg/m².
Bureau Wheelchair resistance : Suitable for use underneath castor chairs. EN 425:2002.
Frost resistance : Yes.
Humidity resistance : Very good, fungistatic, bacteriostatic.
Special quality : Decoupling of wet substrates. An existing substrate will not be damaged, natural stone, linoleum, parquet or other will be fully recovered after a different use, since interactions of the 805 Sarlibase TE decoupling carpet pad are not expected.
Fire class : C fl - s1. (EN13501-1).
Noise reduction : Approx ca. 7 dB.

Application

Application:

For decoupling floor coverings from the substrate.

For temporary installation of floor coverings on existing floors to preserve them.


Working Process

Sound reduction : Approx ca. 7 dB.
Waiting time : None.
Storage : Store cool and dry, standing in unopened packaging.
Shelf Life : Minimum 72 Months, in unopened packaging.
By drying : Immediately usable
Moisture resistance : Very good, fungistatic, bacteriostatic.
Frost-proof : Yes.
Remarks : If floor coverings suitable for castor chairs are bonded, the entire construction with the 805 Sarlibase TE decoupling underlay is also suitable for castor chairs (DIN 68131).
In case of underfloor heating, pay attention to the changed thermal resistance of the construction.

* The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

Substrate:
  • The substrate must be pressure- and tension-resistant, even.
  • Minor unevenness or cracks up to 0.5 mm are bridged by the installation.
  • The installation materials used must be suitable for the substrate and the intended use.


User manual:
  • 805 Sarlibase TE Roll out, roughly cut to size and lay loosely in the room in the same way as for laying floor covering. The installation is carried out butt-jointed to the floor covering to be installed.
  • In angled rooms or in the door area, the sheet can be fixed with double-sided adhesive tape to prevent slipping when laying the top floor.
  • Leave a gap of at least 5 - 10 mm to rising building components (the use of ventilating skirting boards must be planned) to ensure unhindered ventilation of existing residual moisture.
  • In the case of damp substrates, the joint is taped on the top side with a self-adhesive aluminium tape, resistant to plasticisers. This prevents moisture from penetrating into the upper covering construction via the joint.
  • When used on dry substrates, masking with paper tape, resistant to plasticisers, is sufficient to prevent the adhesive from penetrating the joint area.
  • For bonding, use suitable Eurocol adhesives approved for bonding to dense substrates. For vapour-tight coverings, allow the adhesive to flash off until transparent. Moisture must no longer be trapped within the adhesive groove! It is recommended to use the rolling technique to apply the adhesives.

Processing conditions:

At least 15 °C floor temperature,
at least 18°C material and room temperature,
35-75% relative humidity, recommended <65%.




Environment and health

Safety and environment : Keep out of reach of children. Do not eat, drink or smoke while processing the product. Only give completely empty containers for recycling. Material residues can be disposed of as household waste.


Articles

articelproductnamepackaging
805Sarlibase TEroll à (35*2) m
