eurocol

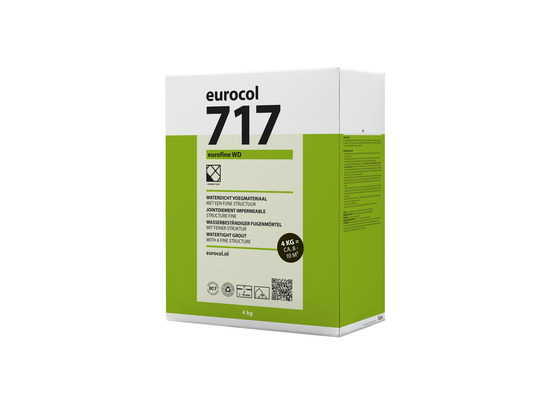

717 EUROFINE WT

717

Universal, flexible and waterproof grout material with a fine structure for grouting ceramic wall and floor tiles, natural stone and glass mosaic. In a joint width of 2 - 10 mm. Applicable to almost all well-constructed constructions, such as cement and plaster-like surfaces, sheet material, floor and wall heating in indoor and outdoor applications. Very suitable choice in combination with tile leveling systems (TLS). Thanks to EMICODE EC 1PLUS (very low emissions) also suitable for BREEAM projects.

  • epdfeica- 717 eurofine wd grijs-uk.pdf

    epdfeica- 717 eurofine wd grijs-uk.pdf

  • 717-safety data sheet uk.pdf

    717-safety data sheet uk.pdf

  • pdf-product-specification.pdf

    pdf-product-specification.pdf

  • 717-ec 1 plus licence uk.pdf

    717-ec 1 plus licence uk.pdf

Product Typification

Universal, flexible and waterproof grout material with a fine structure for grouting ceramic wall and floor tiles, natural stone and glass mosaic. In a joint width of 2 - 10 mm. Applicable to almost all well-constructed constructions, such as cement and plaster-like surfaces, sheet material, floor and wall heating in indoor and outdoor applications. Very suitable choice in combination with tile leveling systems (TLS). Thanks to EMICODE EC 1PLUS (very low emissions) also suitable for BREEAM projects.
Basis : Cement-powder with additives and a high synthetic binder content, to be mixed with water.
Colour : White, cremé, manhattan-grey, silver-grey, jasmin, beige, buxy, grey, rRstic, Elegant, Vintage, Lightgrey, Graphite. and anthracite. Due to contamination, we do not recommend light-colored joints for floors and outdoor situations.
Consistency : After mixing a smooth and homogeneous mixture.

Product advantages:
  • Emicode EC 1PLUS
  • Very low emission
  • Watertight
  • Flexible
  • Gains a fine structured joint
  • Very suitable choice in combination with tile leveling systems (TLS)
  • For in- and outdoor use
  • For wall and floor tiles
  • Suitable for almost all subfloors
  • Joint width from 2 to 10 mm

Colour

The 717 Eurofine WT is available in the colours:

White:

Cream:

Silver grey:

Manhattan grey:

Grey:

Anthracite:

Jasmin:

Beige:

Buxy:

Elegant:

Rustic:

Lightgrey:

Vintage:

Graphite:

Performances

Classification : Complies with CG2W Ar according to NEN EN 13888. Improved cement-based grouting cement with a reduced water absorption and increased wear resistance. GEV Emicode EC 1PLUS (very low emissions) tested in accordance with EN 13999-2/4. Suitable for BREEAM-projects.
Cleaning resistance : 717 Eurofine WT is resistant against domestic cleaners with a pH-value of 7 or higher.
Colours : The colour on the packaging, color sticks and colour key is an indication! The prepared mortar can have an other colour. In doubt always make a test. Since at the same time a number of factors may affect adversely the colour, Forbo Eurocol takes no responsibility for colour deviations. When using several packaging always use the same charge number.
Consumption : 600-2.500 g/m², depending on the size of the tile, joint width and depth.
he following formula will enable you to calculate the required quantity of grouting cement per m²:
joint width (mm) x joint depth (mm) x joint length per m² (m¹) x specific weight (1.7) x extra expenditure factor (1.5) =……g/m².
Curing : Depending on the temperature and subfloor, the hardening to a low tension and somewhat flexible joint takes place within 1-2 days. During the curing of the joint, the temperature must remain above 5 °C during the day and at night.

Application

Application:
  • Multi-purpose grouting cement for the flexible and watertight jointing of ceramic wall and floor tiles, as well as natural stone and glass mosaics in a joint width to 2-10 mm, on almost all subfloors, e.g. sheet material, gypsum-based subfloors, underfloor and wall heating etc.
  • Not suitable as an acid- and heat-resistant grouting material.

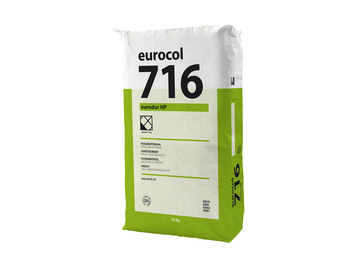

  • For these applications and when wooden floors are directly affected by shower water, we recommend 716 Eurodur HP or 703 adhesive and spout Epoxy.

Working Process

Mixing ratio : 5 kg 717 Eurofine WT to approx. 1-1.2 litres of water. PLEASE NOTE NEW PACKAGING: 4 kg 717 Eurofine WT in approx. 0.8 – 1 liter of water.
Waiting time : After mixing with water wait for a few minutes, stir once again and apply the mixture into the joints.
Application temperature : From 5° to 25 °C (temperature of the surrounding as well as the subfloor). Low temperatures slow down the setting.
Processing time : At a temperature of approx. 20 °C apply the mixed grouting cement within 60 minutes. Higher temperatures will abbreviate the working time. Lower temperatures will lengthen this. Process dark colors within 35 minutes.
Curing : Depending on the temperature and subfloor, the hardening to a low tension and somewhat flexible joint takes place within 1-2 days. During the curing of the joint, the temperature must remain above 5 °C during the day and at night.
Storage : Store cool and dry in unopened packaging.
Shelf Life : 12 Months, in unopened packaging. After use close the open packaging well.

* The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

Consumption:
600-2.500 g/m², depending on the size of the tile, joint width and depth.
he following formula will enable you to calculate the required quantity of grouting cement per m²:
joint width (mm) x joint depth (mm) x joint length per m² (m¹) x specific weight (1.7) x extra expenditure factor (1.5) =……g/m².

User manual:
  • For an optimal grouting of the tiles, the joints must be free from adhesive and/or mortar residues. In order to avoid discoloration of the joint as much as possible, the subfloor e.g. mortar or adhesive must be sufficiently dry when grouting takes place.
  • Remains of the grout product can adhere to porous or matt tiles and plates. Test joints are therefore necessary on these tiles
  • Tiles fixed with adhesive can be grouted after approx. 24-48 hours. Wall tiles fixed in the mortar can be grouted after minimum 4 days. Floor tiles fixed in the mortar can be grouted immediately. Following these regulations, drying of the joints will take place equally.
  • For a good quality of the joint the water/powder ratio is very important. Add 5 kg 717 Eurofine WT to approx. 1-1.2 litres of cool and clean tap water NOTE: use approx. 0.8 – 1 liter of cool and clean tap water with the new packaging (4 kg) and stir the mortar for approx. 1 minute, by using an electric stirrer (approx. 600 rpm), to a smooth and homogenous mixture. After stirring wait for a few minutes and stir once again. This gains an optimal application and an extended potlife.
  • Apply the mortar within 60 minutes fully into the joints with a grouting trowel. Remove excess material immediately. Do not add extra water! Mixing without water is permitted.
  • After grouting wait until the joint will turn somewhat dull. Depending on the circumstances (temperature, relative humidity, type of tile and subfloor) this takes place in 15 to 45 minutes. The joint should be sufficiently dry otherwise the joint will be washed out (Tip: when no mortar is left on your finger after touching the material with a fingertip, the joint is ready for sponging).
  • If you have any doubts about the cleaning of the tile or the adhesion of the grout on, for example, strongly profiled or anti-slip tiles, first conduct a test.
  • Moisten the entire tile work with a rotating movement with a light moist sponge blade and wait for approx. 1 minute. Through this the residual cement haze can easily be removed from the tile work. When using a sponge bin and sponge blade, roll this thoroughly.
  • Finish tight with the sponge, first sponge the tiles diagonal and next parallel to the joint. Make sure every joint is touched. Thereafter clean the tile work diagonal with a clean, light moist sponge.
  • When dry use a clean and dry cloth for the finishing polish. For an optimal strength prevent accelerated drying of the mortar (through warmth, draught, high absorption etc.) by wetting the joints once or several times within 24 hours.
  • After grouting wait at least 24 hours before walking on the floor.


Instruction movie:
Click

Maintenance

Maintenance:

Taking care of the grouting:

For cleaning grouts and to remove any mould use a mould removal product. These products have a chlorine/bleach base and are especially suitable for the use concerned. Cleaning products with a chlorine/bleach base have a pH value of 7 (neutral) or more. These products will not harm the grouting. Some cleaning products, such as green soap, always leave a greasy film to which dirt can easily adhere. These products are also not suitable.

Removing limescale:

Limescale can form on tiles and on the surface of sanitary fittings in regions where the tap water is hard. Almost all limescale removal products are acidic products and have a pH value which is too low. These products will harm cement-bound grouting every time it is cleaned. Even when diluted, the pH value of these products is still too low. The level of a liquid’s acidity is indicated by a pH value of between 0 - 14. Liquids with a neutral level of acidity (such as tap water) have a pH value of 7. Contact the manufacturer if the pH value of the cleaning product is not stated on the packaging.

Forbo Eurocol Nederland B.V. recommends the following when cleaning tiles:

  • Only use a cleaning product in the places where limescale and other dirt is visible on the tiles and the grouting. Wet the tiles and the grouting thoroughly before applying the cleaning product. The cleaning product will then not penetrate so deeply into the grouting.
  • Rub the tiles clean, preferably using a non-acidic cleaning product. Work according the guidelines of the manufacturer!
  • After cleaning the tiles, rinse them thoroughly with tap water and dry them with a cloth.


Quality and guarantee

Environment and health

Safety and environment : Safety data sheets of Forbo Eurocol products according to EEG-guideline 91/155.
MSDS : For extensive information about safety and environment we refer to our website www.eurocol.nl.


Environment and health

  • Environmental Product Declaration/Environmental Product Declaration EPD-DBC-20220217-IBF1-EN.
  • Tested for emissions of volatile organic compounds and has tested EMICODE EC 1PLUS in accordance with EN 13999-2/4.
  • Meets the criteria of BREEAM-NL HEA 9 Volatile Organic Compounds; promoting healthy and good indoor air quality because the construction and finishing materials used cause low emissions of harmful volatile organic compounds and other harmful substances. Suitable for BREEAM new construction and renovation.


Articles

ArticleDefinitionPackagingEAN-codeMin. order
717Eurofine WT5x4 kg boxNBNew packaging

grey
8 710345 717175

white
8 710345 717199

Manhattan grey
8 710345 717854

silver grey
8 710345 717678

beige
8 710345 717298

Jasmin
8 710345 717755

anthracite
8 710345 717274

Buxy
8 710345 717472

cream
8 710345 717496

Vintage
8 710345 717953

Lightgrey
8 710345 717977

Rustic
8 710345 717892

Elegant
8 710345 717939

Graphite
8 710345 717991
717Eurofine WT4 kg boxNB5 pieces

grey
8 710345 717168

white
8 710345 717182

Manhattan grey
8 710345 717847

silver grey
8 710345 717861

beige
8 710345 717281

Jasmin
8 710345 717748

anthracite
8 710345 717267

Buxy
8 710345 717465

cream
8 710345 717489

Vintage
8 710345 717946

Lightgrey
8 710345 717960

Rustic
8 710345 717885

Elegant
8 710345 717922

Graphite   8 710345 717984
717Eurofine WT5x5 kg box


grey
8 710345 717144

white
8 710345 717304

Manhattan grey
8 710345 717816

silver grey
8 710345 717335

beige
8 710345 717618

Jasmin
8 710345 717717

anthracite
8 710345 717229

Buxy
8 710345 717151

cream
8 710345 717595

Vintage
8 710345 717373

Lightgrey
8 710345 717380

Rustic
8 710345 717359

Elegant
8 710345 717366

Graphite
8 710345 717397
717Eurofine WT5 kg box
5 pieces

grey
8 710345 717403

white
8 710345 717038

Manhattan grey
8 710345 717083

silver grey
8 710345 717045

beige
8 710345 717915

Jasmin
8 710345 717076

anthracite
8 710345 717328

Buxy
8 710345 717250

cream
8 710345 717526

Vintage
8 710345 717434

Lightgrey
8 710345 717441

Rustic
8 710345 717410

Elegant
8 710345 717427

Graphite   8 710345 717052
