eurocol

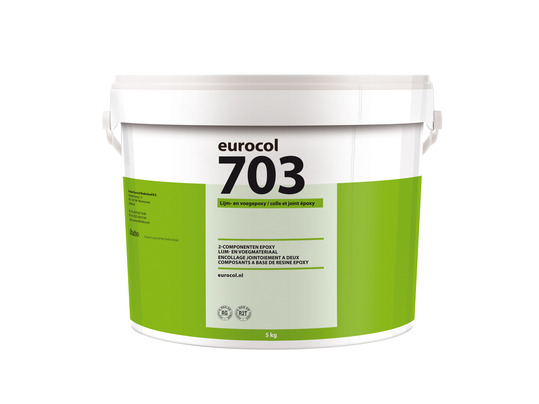

703 ADHESIVE AND SPOUT EPOXY

703

2-component spout epoxy.

  • dop-declaration-uk.pdf

    dop-declaration-uk.pdf

  • pdf-product-specification.pdf

    pdf-product-specification.pdf

  • 703a-safety data sheet uk.pdf

    703a-safety data sheet uk.pdf

  • 703b-safety data sheet uk.pdf

    703b-safety data sheet uk.pdf

Product Typification

2-component spout epoxy.
Basis : Epoxy-based 2-component grouting material, containing a resin component and a liquid hardener.
Colour : Grey, silver-grey, anthracite and off-white. Other colours available on request.
Consistency : After mixing of the resin and hardener components a thick liquid.

Product advantages:
  • Applicable with spray
  • Acid- and heat-resistant
  • Watertight
  • Practical odourless
  • For in- and outdoor use
  • Suitable for almost all subfloors
  • Joint width from 1.5-12 mm
  • High final bond strength
  • Crack-free hardening

Performances

Aging : 703 Adhesive and Spout Epoxy does not deteriorate with age. Ageing refers to the epoxy-system and not to the colour and/or glow.
Classification : Complies with RG, according to NEN EN 13888.
Cleaning resistance : 703 Adhesive and Spout Epoxy does not deteriorate with age. Ageing refers to the epoxy-system and not to the colour and/or glow.
Consumption : Depending on the size of the tile, joint width and depth. The following formula will enable you to calculate the required quantity of grouting cement per m²:
joint width (mm) x joint depth (mm) x joint length per m² (m¹) x specific weight (1.6) x extra expenditure factor (1.2) =……g/m².
Curing : The drying time to a tension-free joint takes place in 16 hours through a chemical reaction. At 20 °C the material is completely chemical-proof after approx. 7 days.
Flammability : Non-flammable.
Resistance :

Chemical resistance list:



1,1,1-trichloroethane

+

Glacial acetic acid

-

1,2-propylene glycol

+

Glycerine

+

Acetaldehyde

0

Glycol

+

Acetic acid < 5%

+

Hydraulic oil

+

Acetic acid < 10%

+

Hydrogen peroxide < 30%

+

Acetone

0

Iron sulphate < 30%

+

All-purpose cleaner

+

Isopropyl acetate

0

Aluminium chloride < 10%

+

Isopropyl alcohol

+

Aluminium sulphate < 40%

+

Lactic acid < 5%

+

Ammonia

+

Lactic acid < 10%

+

Ammonium carbonate < 10%

+

Lactic acid < 20%

+

Ammonium carbonate < 50%

+

Lemonade

+

Ammonium chloride

+

Magnesium chloride < 35%

+

Ammonium nitrate < 50%

+

Methanol

+

Ammonium sulphate < 50%

+

Methylene chloride

-

Amyl acetate

0

Methyl ethyl ketone

0

Barium chloride < 10%

+

Methyl glycol acetate

0

Barium chloride < 40%

+

Methyl isobutyl ketone

0

Battery acid

+

N-hexane

+

Beer

+

Nitric acid < 10%

+

Benzaldehyde

0

Nitric acid < 20%

+

Benzene

0

Nitric acid < 50%

-

Bleach (15% chlorine)

+

Oleic acid

+

Boron acid < 3%

+

Oxalic acid, 10% in water

+

Butyl acetate

0

Paraffin oil

+

Butyldiglycol

+

Perchloroethylene

+

Butylglycol

+

Petrol

+

Calcium chloride < 20%

+

Petroleum ether

+

Calcium chloride < 40%

+

Phenol, 1% in water

+

Calcium hydroxide < 20%

+

Phenol, 20% in water

-

Calcium nitrate < 50%

+

Phosphoric acid < 30%

+

Carbonated water

+

Pivot oil

+

Caustic soda

+

Potassium carbonate < 20%

+

Chlorous water

+

Potassium dichromate

+

Chloroform

-

Potassium hydroxide conc.

+

Chromic acid < 10%

+

Potassium permanganate < 5%

+

Citric acid < 20%

+

Potassium persulfate < 50%

+

Cola

+

Propyl alcohol

+

Concrete aggressive water (pH 12)

+

Sanitary cleaner

+

Copper sulphate < 15%

+

Silicon oil

+

Cresol, 60% in water

-

Silver nitrate < 1%

+

Cyclohexane

+

Sodium acetate < 20%

+

Cyclohexanone

0

Sodium carbonate < 18%

+

Di(2-ethylhexyl)phthalate

+

Sodium chloride sated

+

Dibutyl phthalate

+

Sodium sulphate < 20%

+

Diesel oil

+

Sodium sulphate sated

+

Diglycol

+

Spirit

+

Dimethylformamide

-

Sugar solution < 10%

+

Dimethyl phthalate

+

Sulphuric acid < 30%

+

Dimethyl glycol phthalate

+

Sulphuric acid < 50%

+

Dioctylphthalate

+

Sulphuric acid < 70%

+

Dioxane

+

Sulphuric acid < 98%

-

Disinfectant AP3

+

Test petrol

+

Engine oil

+

Tetrachlorohydrocarbon

0

Ethanol

+

Tetrahydrofuran

-

Ether

0

Trichloroethylene

+

Ethyl acetate

0

Triethanolamine

+

Ethylene chloride

0

Triisobutylene

+

Ethylene diglycol

+

Toluene

0

Fatty acid at < 50° C

0

Turpentine oil

+

Fuel oil, light

+

Vegetable oil

+

Formalin

+

Wine

+

Formic acid < 3%

+

Wine acid < 10%

+

Formic acid < 5%

+

Xylene

0

Formic acid < 10%

0

Zinc chloride < 50%

+

Furfural

+

Zinc tetrachloride < 20%

+

Explanations of signs:

+ resistant
0 limited resistant max. 24 hours
- non-resistant

Resistance refers to the epoxy system and not to colour and/or glow.

Specific weight : 1.6 kg/l.

Application

Application:
  • For the acid- and heat-resistant grouting of ceramic floor and wall tiles on sinks, laboratory tables, industrial floors that will be affected by chemicals etc.
  • Also very suitable for extreme moist areas, e.g. sanitary areas, professional kitchens and swimming pools.

Working Process

Storage : Store cool and dry in unopened packaging.
Mixing ratio : Mix the resin and hardener components completely together. Or 3 parts of resin to 1 part of hardener.
Processing time : At a temperature of approx. 20 °C apply the mixed mortar within approx. 50 minutes. Higher temperatures will abbreviated the working time
Processing time : Lower temperatures will lengthen this.
Waiting time : None. Apply 703 Adhesive and Spout Epoxy immediately after mixing.
Shelf Life : 6 Months, in unopened packaging. After use close the open packaging well.
Application temperature : From 15° to 30 °C (surrounding temperature). Temperature of the tile work < 10 °C. The most ideal working temperature of the material and surrounding is 20 °C. In case of lower surrounding temperatures acclimatise the material before application. In case of higher surrounding temperatures it is recommended to cool the material in a water bath.

* The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

Consumption:
Depending on the size of the tile, joint width and depth. The following formula will enable you to calculate the required quantity of grouting cement per m²:
joint width (mm) x joint depth (mm) x joint length per m² (m¹) x specific weight (1.6) x extra expenditure factor (1.2) =……g/m².


User manual:

Directions for use grouts:

  • The joints should be clean, dry and free from grease and dust.
  • Follow the directions by “working temperature” of the “technical facts”. Do not grout on subfloors that are strongly warmed through e.g. sunlight. The firs two days after application the temperature may not drop under 12 °C.
  • Grout the fixed tiles after approx. 24 hours. Tiles fixed with a sand/cement mortar can be grouted after minimum 3 days (depending on the drying process of the mortar).
  • Add component A and B completely together and mix for minimum 3 minutes with an electric stirrer to a smooth and homogenous mixture. If only part of the packaging is to be used, add approx. 3 parts of resin to 1 part of hardener. Take care that insufficient mixing can cause permanent sticky parts in the joint, which will not bond completely. In case of wall applications add 1 bag of consistency adjuster before mixing.
  • Apply the mixture immediately with a rubber spatula or spout into the joints. Remove excess material immediately in diagonal direction.
  • After removing the excess material, emulsify grouting residues with as little water as possible, with Cleaning Pad 38, Padholder 37 and warm water. Thereafter clean tiles with a viscose sponge. Wait with cleaning until the joints have dried. Waiting time is 1-5 hours, depending on temperature and relative humidity. Clean anti-skid tiles and tiles that are not glazed completely before hardening. After hardening it is almost impossible to remove epoxy residues.
  • After grouting wait at least 16 hours before walking on the floor.

Directions for use thin bed adhesive:

  • The surface must be clean, free of grease and dust, dry, pressure and tear resistant, in accordance with the requirements, as stated in DIN 18 532.
  • Properly observe the instructions regarding the procesing temperature of the technical properties. Do not apply adhesive to substrates that become very hot e.g. through solar radiation. The first two days after application the temperature may not drop below 12 °C.
  • Slightly sanding screeds must be primed using 021 Euroblock Reno.
  • Add all the resin and hardener components together and mix the paste with a spiral mixer for 3 to 4 minutes to a lump free, homogeneous compound. Important: if the compound has not been mixed sufficient, sticky lumps will arise in the adhesive which will not bind entirely.
  • Apply grooves with the trowel and place the tiles within 10-15 minutes in a sliding motion in the fresh bed of adhesive and press firmly. Always check that the back of the tiles is in contact with the adhesive entirely. Excess adhesive must be removed from the joints immediately.
  • At a temperature of approx. 20 °C the tiles can be grouted after 1 to 2 days, depending on the circumstances.
  • The mixed adhesive must be processed within 60 minutes.
  • After the adhesive has been applied, the floors cannot be walked on for at least 24 hours.

General:

  • Clean tools immediately after use with warm water.
  • You are advised to wear rubber gloves when processing the adhesive. Thoroughly wash with water and soap in the event of skin contact.
  • In advance always seek our technical data sheets. In doubt about the application ask for technical advice.




Quality and guarantee

Environment and health

Safety and environment : Safety data sheets of Forbo Eurocol products according to EEG-guideline 91/155.
MSDS : For extensive information about safety and environment we refer to our website www.eurocol.nl.


Articles

ArticleDefinitionPackagingEAN-code
703Adhesive and Spout Epoxy 5 kg combi pack

grey
8 710345 703116

silver-grey
8 710345 703215

off-white
8 710345 000123

anthracite
8 710345 703321
