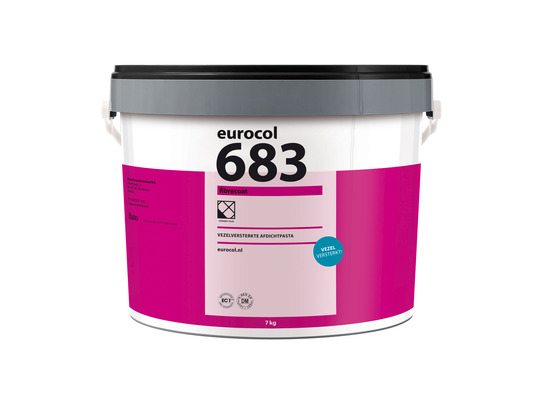

eurocol
683 FIBRECOAT

683

Permanently elastic and fibre-reinforced sealing paste for sealing tight horizontal, vertical corner joints (max. 10 mm) and cracks around conduit pipes, drains, etc. when tiling in bathrooms. Can also be used as a closed and protective waterproof layer on moisture-sensitive walls and floors. Thanks to EMICODE EC 1PLUS (very low emissions), also suitable for BREEAM projects.

  • 683-safety data sheet uk.pdf

    683-safety data sheet uk.pdf

  • 683-ec 1 plus licence uk.pdf

    683-ec 1 plus licence uk.pdf

  • dop-declaration-uk.pdf

    dop-declaration-uk.pdf

  • pdf-product-specification.pdf

    pdf-product-specification.pdf

Product Typification

Permanently elastic and fibre-reinforced sealing paste for sealing tight horizontal, vertical corner joints (max. 10 mm) and cracks around conduit pipes, drains, etc. when tiling in bathrooms. Can also be used as a closed and protective waterproof layer on moisture-sensitive walls and floors. Thanks to EMICODE EC 1PLUS (very low emissions), also suitable for BREEAM projects.
Basis : Ready-for-use paste with a fibre reinforced acrylic base.
Colour : Purple.
Consistency : Paste, easy to apply.

Product advantages:
  • EMICODE EC 1PLUS (very low emission)
  • Fibre reinforced and no 063 Eurotape needed
  • Seals connections up to app. 10 mm
  • After bonding well moisture-resistant
  • Permanent elastic
  • Flexible
  • Easy to apply in one move
  • Small thickness
  • Suitable for indoor use
  • Ready-for-use
  • Included brush (70 mm)

Performances

Alkali resistance : 683 Fibrecoat is resistant against alkaline moisture.
Classification : Highest class according to NEN-EN 14891 DM. High-quality fibre-reinforced dispersion-based, liquid-applied and waterproof membrane for use under ceramic tiles in indoor environments. Tested by WTCB in Belgium. EMICODE EC 1PLUS tested conform to EN 13999-2/4. Suitable for BREEAM.
Consumption : As seam sealing: 400 g/m¹. In case of a 2 mm wet layer thickness.
As a closed layer 2000 g/m². In case of a 2 mm wet layer thickness.
Humidity resistance : After drying 683 Fibrecoat is moisture-resistant and therefore very suitable for application in “wet areas”. Not suitable outdoors or under water (swimming pools).
Specific weight : 1.4 kg/l.

Application

Application:
  • For sealing tight horizontal and vertical corner connections (max. 10 mm) of tile work in bathrooms.
  • For sealing chinks around water pipes, drain outlets etc.
  • As a protected watertight layer on moisture sensitive walls and floors e.g. gypsum, anhydrite and wood.
  • For sealing seams when installing 820 DIM Floor.
  • Not suitable outdoors or under water or permanent water pressure. Use 730 Isoflex instead.

Working Process

Application temperature : > 5 °C. Both temperature for surrounding and subfloor.
Storage : Store free from frost. Protect against high temperatures.
Shelf Life : 12 Months, in unopened packaging. After use close the open packaging well.
Drying : 12 Hours. depending on substrate, application and temperature. High temperatures shorten drying time lower temperatures slow this down.
Moisture resistance : After drying 683 Fibrecoat is moisture-resistant and therefore very suitable for application in “wet areas”. Not suitable outdoors or under water (swimming pools).

* The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

Consumption:
As seam sealing: 400 g/m¹. In case of a 2 mm wet layer thickness.
As a closed layer 2000 g/m². In case of a 2 mm wet layer thickness.

Substrate:
  • Suitable for almost any type of subfloor that is clean, dry and free from grease and dirt.
  • Pre-seal large slots and cracks with a suitable product.
  • Prime moisture-absorbent subfloors with 099 Dispersion Primer.
  • In advance always seek our technical data sheets on www.eurocol.nl. In doubt about the application ask for technical advice.


User manual:
  • As seam sealing: The tight wall/floor connection, as well as the vertical shower corner(s) should be covered with 683 Fibrecoat in a minimum wet layer thickness of 2 mm. Ensure that a strip of approximately 10 cm wide is applied well (at least 2 mm) from each corner on both sides. The 2 mm layer thickness is necessary due to watertightness and compensation for stresses. Close the corner connections well with 683 Fibrecoat so that no hollow spaces are created. If necessary, use a corner or filler with the supplied brush.
  • Also finish the pipe outlets in the wall and floor, the discharge sump or drain all around with 683 Fibrecoat.
  • In the case of wider wall/floor connections (> 10 mm), e.g. for tiles in the mortar, 683 Fibrecoat can be used in combination with 063 Eurotape.
  • As closed watertight layer: Apply a closed layer of 2 mm of 683 Fibrecoat to the substrate with a brush or flat trowel. The substrate must not shine through the sealing paste.
  • The drying time is approx. 12 hours (depending on the prevailing conditions, layer thickness and substrate).
  • Clean tools with water after use.
  • Working temperature from 5° to 25 °C. Store free from frost.
  • Product residues and cleaning water drains according to local applicable environmental rules and do not drain in the sewer.
  • Avoid contact with eyes and skin and use proper protecting equipment (see our safety sheet).




Quality and guarantee

Environment and health

Safety and environment : Safety data sheets of Forbo Eurocol products according to EEG-guideline 91/155.
MSDS : For extensive information about safety and environment we refer to our website www.eurocol.co.uk


Articles

Article Definition PackagingEAN-code
683Fibrecoat14 kg Bucket  8 710345 683104
683Fibrecoat7 kg Bucket8 710345 683203
