823 EUROFLOOR RENO

823

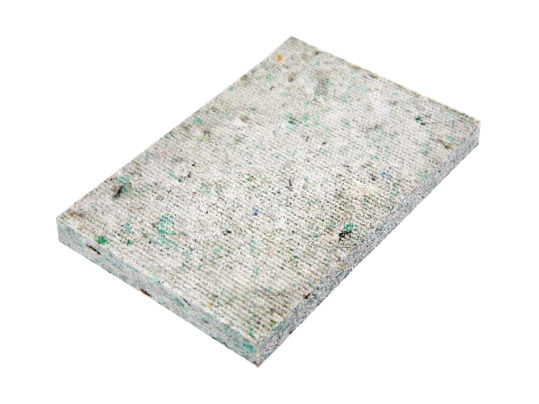

Underlay and decoupling panel.

Decoupling and height compensation before laying parquet or levelling or flooring works.

  • licence_823_ec1plus_2020 uk.pdf

    licence_823_ec1plus_2020 uk.pdf

  • pdf-product-specification.pdf

    pdf-product-specification.pdf

Product Typification

TODO
Basis : Polyester flakes, compressed.
Colour : Light green.
Dimensions : (100x60) cm, 4 or 9 mm thickness

Product advantages:
  • Polyester fibre plate, which has to be full-area glued down with recommended reactive Eurocol adhesives on suitable subfloors to decouple the floor covering construction from weak subfloors.
  • Can also be used for height adjustments without levelling compounds, before the installation of parquet, ceramic tiles and different floor coverings.
  • For the installation of floor coverings, the evenness and absorbency must be established with Eurocol levelling compounds.
  • It significantly improves step sound insulation.
  • Bridges cracks
  • Dimension stable
  • Very simple application
  • Very low emission. EMICODE EC 1 Plus.
  • Emission-tested building product according to DIBt principles.

Performances

Flammability : E fl
Frost resistance : Yes.
Special quality : Minimizes the shear stress to the sub floor.

Application

Application:
For decoupling flooring and parquet constructions from screeds and subfloors.

Working Process

Storage : Store cool and dry in unopened packaging.
Shelf Life : Minimum 72 Months, in unopened packaging.
Frost-proof : Yes.
Remarks :

Technical information and safety data sheets of other laying materials must be observed!

In the case of old wooden floors, make sure that the old construction is sufficiently ventilated. The 9 mm board is not suitable for underfloor heating.


* The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

Substrate:
  • The substrate must be pressure- and tension-resistant, permanently dry, free of cracks and dust, even and free of layers that reduce adhesion.
  • Adhesion-reducing layers, old material residues must be removed by suitable mechanical measures in accordance with the specifications of DIN 18365.
  • Minor unevenness or cracks up to 0.5 mm are bridged by bonding and can can be levelled with the adhesive.
  • For levelling the substrate use recommended Eurocol levelling compounds/primers.
  • The installation materials to be used must be suitable for the substrate and the intended use.


User manual:
  • Before use, temper the product according to the processing conditions.
  • 823 Eurofloor Reno lay out loosely, cut to size with a circular or jigsaw or trapezoid knife.
  • Leave an edge joint to rising components (wood substrate 10 mm, mineral substrates 5 mm).
  • Use a Eurocol 1-component or 2-component parquet adhesive to glue the panels together in a half-bond over the entire surface. Select a toothed strip so that complete, grooved wetting is ensured on the back of the panels. (TKB B2/B3/B11).
  • Rub well and roll on.

Solvent- or water-based adhesives are not suitable for gluing the panels.

  • For following levelling work, wait for the adhesive to set.
  • Pre-fill joints with stable filler 940 Europlan Quick or prime with 070 Europrimer Fill.
  • Adopt edge joints to rising building components accordingly.
  • Only use approved Eurocol levelling compounds that are also suitable for future use. The minimum layer thickness of the levelling compound must be 3 mm. If necessary, use additional 811 Europlan Fibre to improve the compressive strength of the levelling layer.

Processing conditions:

At least 15 °C floor temperature,
at least 18°C material and room temperature,
35-75% relative humidity, recommended <65%.




Quality and guarantee

Environment and health

Safety and environment : Keep out of reach of children. Do not eat, drink or smoke while processing the product. Only give completely empty containers for recycling. Material residues can be disposed of as household waste.


Articles

articelproductnamepackagingshipping unit
823Eurofloor Reno box à 9 m² (100*60) cm, 4 mm10 boxes/pallet
823Eurofloor Reno box à 6 m² (100*60) cm, 9 mm10 boxes/pallet
